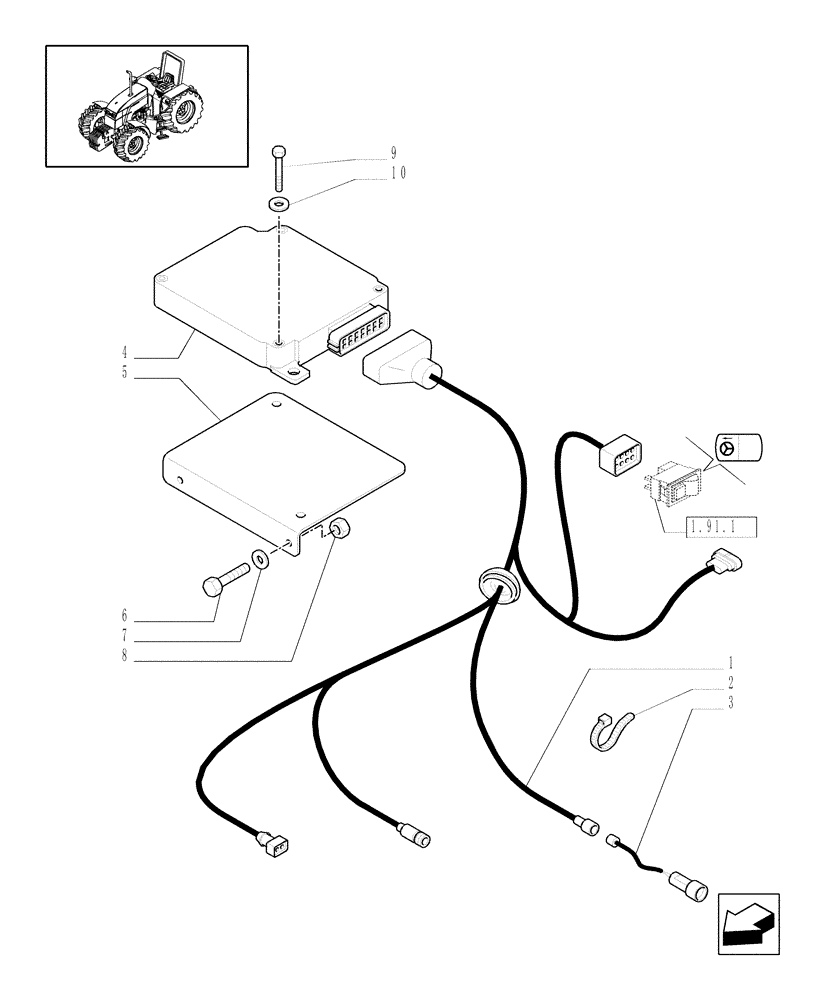

Запчасти Case IH MXU115 (1.75.4/07) - (VAR.360-361-636-636/1) FAST STEERING - AUXILIARY CABLES (06) - ELECTRICAL SYSTEMS

1

87343405

WIRE HARNESS

Fast Steer, Serial Range: -C5522

1шт.

1

87389026

WIRE HARNESS

Fast Steer, Serial Range: D5522-C5524

1шт.

1

87576002

WIRE HARNESS

Fast Steer, Start Serial: D5524

1шт.

2

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

7шт.

3

87314609

SENSOR

MULTIPROX, Serial Range: -C5974

1шт.

3

87738133

SENSOR

, Start Serial: D5974

1шт.

4

47124284

MODULE

FAST STEERING, Serial Range: -C5720

1шт.

4

87563011

MODULE

, Start Serial: D5720

1шт.

5

87325630

SUPPORT

1шт.

6

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

2шт.

7

14496321

WASHER

5x10

2шт.

8

14084114

FLANGE NUT,M5 x .8, Flg

2шт.

9

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

10

14496404

WASHER,M6 x 12 x 2 Thk

2шт.
