(1.75.4/03[01A]) - (VAR.110-120-300-300/1) TRANSMISSION 12X12 - REAR MAIN CABLE - L/CAB - D5148

Запчасти Case IH MXU115 (1.75.4/03[01A]) - (VAR.110-120-300-300/1) TRANSMISSION 12X12 - REAR MAIN CABLE - L/CAB - D5148 (06) - ELECTRICAL SYSTEMS

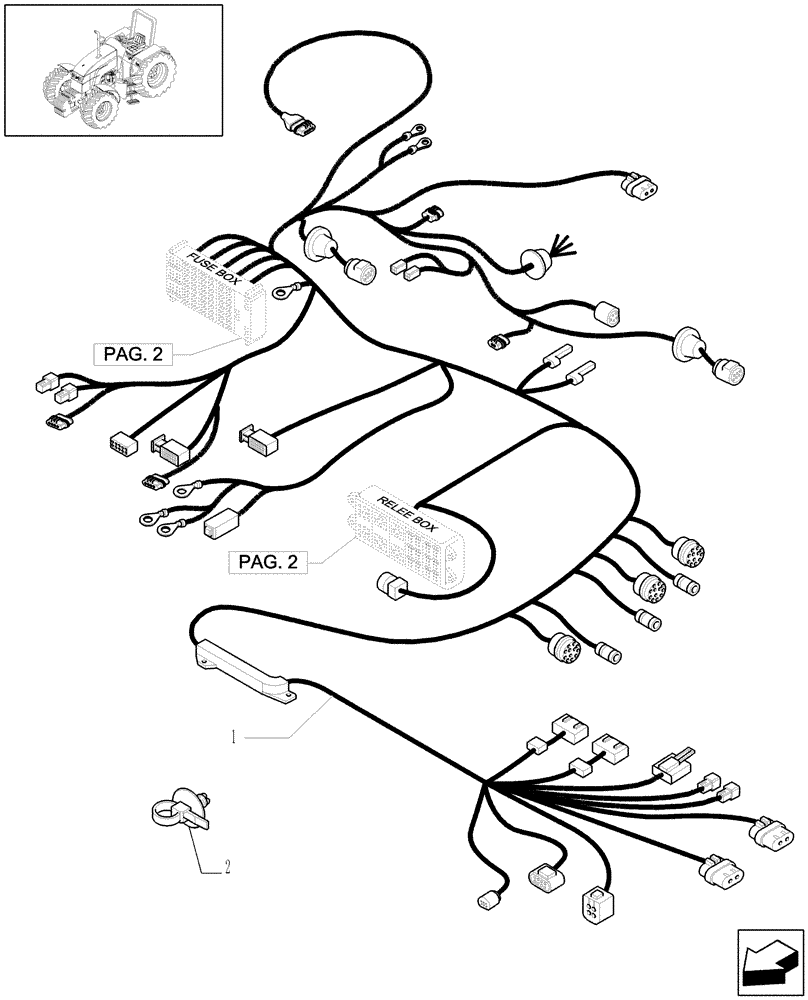

Схема запчастей Case IH MXU115 - (1.75.4/03[01A]) - (VAR.110-120-300-300/1) TRANSMISSION 12X12 - REAR MAIN CABLE - L/CAB - D5148 (06) - ELECTRICAL SYSTEMS
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82039440

WIRE HARNESS

Main Rear, Serial Range: -C5210

1шт.

1

87313637

WIRE HARNESS

Main Rear, 12x12, Serial Range: D5210-C5759

1шт.

1

87644467

WIRE HARNESS

Main Rear, 12x12, Start Serial: D5759

1шт.

2

82033028

CABLE TIE,170mm L

, Start Serial: D5761

1шт.

Выбрано товаров: 4
