Запчасти Case IH MXU115 (1.75.4[03A]) - FRONT MAIN CABLE AND ENGINE CABLE - L/CAB - D5148 (06) - ELECTRICAL SYSTEMS

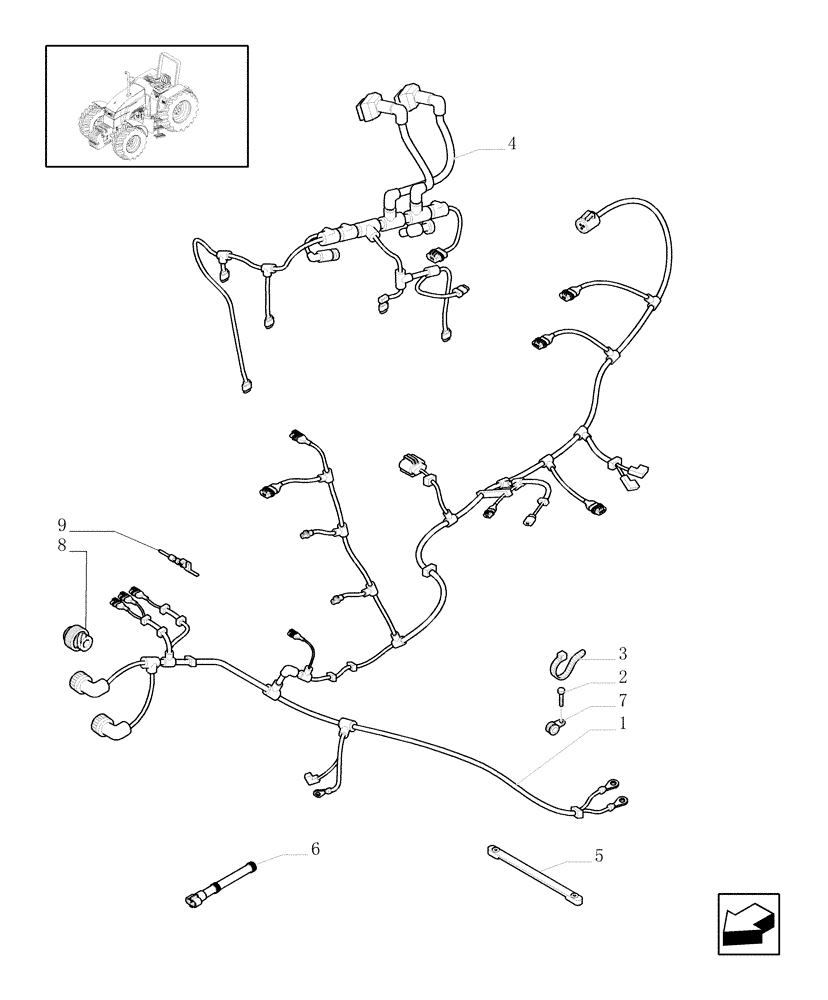

Схема запчастей Case IH MXU115 - (1.75.4[03A]) - FRONT MAIN CABLE AND ENGINE CABLE - L/CAB - D5148 (06) - ELECTRICAL SYSTEMS
9
1
7
5
2
4
8
6
3

Артикул

Название

Примечание

Количество

1

82037112

WIRE HARNESS

Front Main, Mech. Basic, MXU100, Serial Range: EKP005277/ACP244473-C7071

1шт.

1

87305183

WIRE HARNESS

Front Main, Mech. Basic, MXU100, Start Serial: D7071

1шт.

1

82037114

WIRE HARNESS

Front Main, Elec. Basic, MXU110, Serial Range: EKP005447/ACP244473-C7071

1шт.

1

87305187

WIRE HARNESS

Front Main, Elec. Basic, MXU110, Start Serial: D7071

1шт.

1

82037113

WIRE HARNESS

Front Main, Mech. Basic, MXU115, Serial Range: EKP005255/ACP244473-C7071

1шт.

1

87305185

WIRE HARNESS

Front Main, Mech. Basic, MXU115, Start Serial: D7071

1шт.

1

82037115

WIRE HARNESS

Front Main, Elec. Basic, MXU125, Serial Range: EKP005233/ACP244473-C7071

1шт.

1

87305189

WIRE HARNESS

Front Main, Elec. Basic, MXU125, Start Serial: D7071

1шт.

1

82039437

WIRE HARNESS

Front Main, Mech. Advanced, MXU100, Start Serial: EKP005277/ACP244473

1шт.

With front PTO, front PTO & HPL, grid heater, 4WD front axle with suspension

1шт.

1

87305182

WIRE HARNESS

Front Main, Mech. Advanced, MXU100, Start Serial: D7071

1шт.

With front PTO, front PTO & HPL, grid heater, 4WD front axle with suspension

1шт.

1

82039684

WIRE HARNESS

Front Main, Elec. Advanced, MXU110, Serial Range: EKP005447/ACP244473-C7071

1шт.

With front PTO, front PTO & HPL, front HPL, 4WD front axle with suspension, radar unit

1шт.

1

87305186

WIRE HARNESS

Front Main, Elec. Advanced, MXU110, Start Serial: D7071

1шт.

With front PTO, front PTO & HPL, front HPL, 4WD front axle with suspension, radar unit

1шт.

1

82039436

HARNESS

Front Main, Mech. Advanced, MXU115, Serial Range: EKP005255/ACP244473-C7071

1шт.

With Front PTO, front PTO & HPL, grid heater, 4WD front axle with Suspension, Radar Unit

1шт.

1

87305184

WIRE HARNESS

Front Main, Mech. Advanced, MXU115, Start Serial: D7071

1шт.

With Front PTO, front PTO & HPL, grid heater, 4WD front axle with Suspension, Radar Unit

1шт.

1

82039685

WIRE HARNESS

Front Main, Elec. Advanced, MXU125, Serial Range: EKP005233/ACP244473-C7071

1шт.

With front PTO, front PTO & HPL, front HPL, 4WD front axle with suspension and terralock, radar unit

1шт.

1

87305188

WIRE HARNESS

Front Main, Elec. Advanced, MXU125, Start Serial: D7071

1шт.

With front PTO, front PTO & HPL, front HPL, 4WD front axle with suspension and terralock, radar unit

1шт.

2

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

, Serial Range: -C7071

2шт.

2

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

, Start Serial: D7071

2шт.

3

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

4

82034584

WIRE HARNESS

ENGINE, Electronic, MXU110, Serial Range: -C7071

1шт.

4

87331173

WIRE HARNESS

ENGINE, Electronic, MXU110, Start Serial: D7071

1шт.

4

82034585

WIRE HARNESS

ENGINE, Electronic, MXU125, MXU135, Serial Range: -C7071

1шт.

4

87331174

WIRE HARNESS

ENGINE, Electronic, MXU125, MXU135, Start Serial: D7071

1шт.

5

82034172

CABLE TIE

CABLE STRAP

1шт.

6

82036572

WIRE HARNESS,120 ohm

CAN TERMINATOR

1шт.

7

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

3шт.

7

10441990

CLAMP,24mm, Coat, 7mm Bolt Hole, P Type

, Start Serial: D7071

2шт.

8

82039660

MULTIPOLE CONNECTOR,MALE, 51 POLE, YELLOW

Cannon APD, Yellow, Start Serial: D7071

1шт.

8

82039661

MULTIPOLE CONNECTOR,MALE, 51 POLE, GREEN

Cannon APD, Green, Start Serial: D7071

1шт.

8

82039662

MULTIPOLE CONNECTOR,MALE, 51 POLE, PURPLE

Cannon APD, Purple, Start Serial: D7071

1шт.

8

82039663

MULTIPOLE CONNECTOR,MALE, 51 POLE, BROWN

Cannon APD, Brown, Start Serial: D7071

1шт.

8

82039664

MULTIPOLE CONNECTOR,FEMALE, 51 POLE, YELLOW

Receptacle, Yellow, Start Serial: D7071

1шт.

8

82039665

MULTIPOLE CONNECTOR,FEMALE, 51 POLE, GREEN

Receptacle, Green, Start Serial: D7071

1шт.

8

82039666

MULTIPOLE CONNECTOR,FEMALE, 51 POLE, PURPLE

Receptacle, Purple, Start Serial: D7071

1шт.

8

82039667

MULTIPOLE CONNECTOR,FEMALE, 51 POLE, BROWN

Receptacle, Brown, Start Serial: D7071

1шт.

9

82039668

ELEC. TERMINAL PIN,TIN, 0.75MM - 1.50MM, 23.25MM L

, Start Serial: D7071

1шт.

9

82039669

ELEC. TERMINAL PIN,TIN, 0.75MM - 1.50MM, 21.3MM L

, Start Serial: D7071

1шт.

Выбрано товаров: 46
