Запчасти Case IH MXU115 (1.75.4[03]) - FRONT MAIN CABLE AND ENGINE CABLE - L/CAB - C5148 (06) - ELECTRICAL SYSTEMS

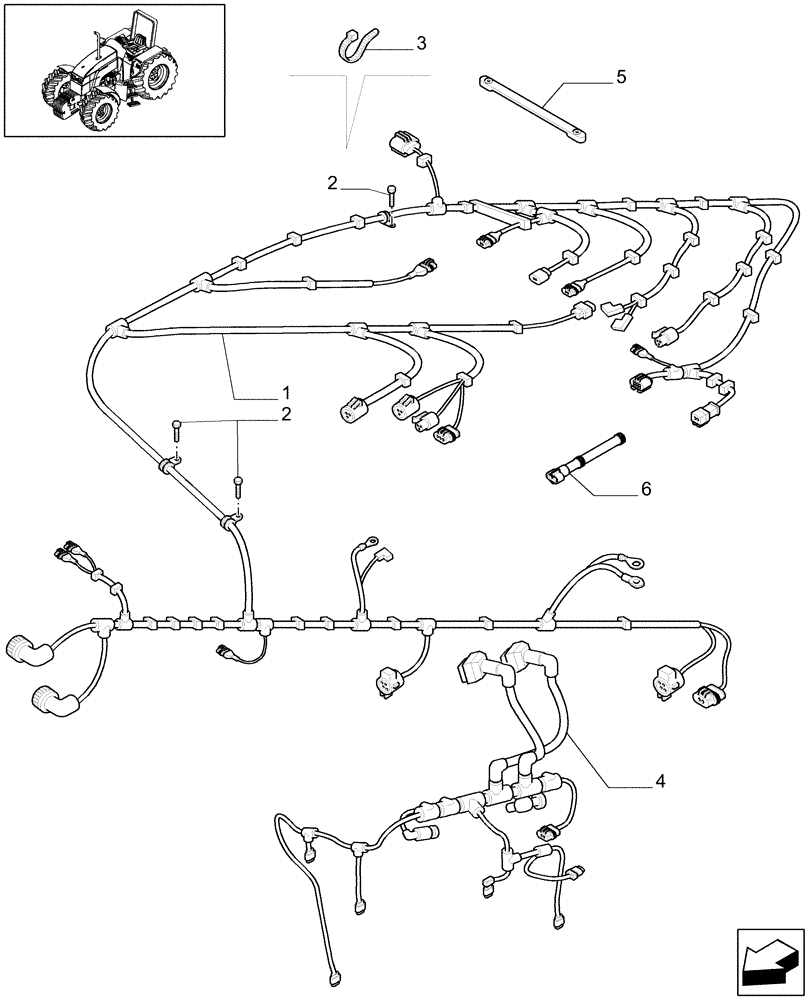

Схема запчастей Case IH MXU115 - (1.75.4[03]) - FRONT MAIN CABLE AND ENGINE CABLE - L/CAB - C5148 (06) - ELECTRICAL SYSTEMS
5
1
2
3
6
2
4

Артикул

Название

Примечание

Количество

1

82035823

WIRE HARNESS

MXU100, Incl. Ref.5, MECHANICAL ADVANCED, Serial Range: -EKP005276/ACP244472

1шт.

1

82035825

WIRE HARNESS

MXU110, MECHANICAL ADVANCED, Serial Range: -EKP005446/ACP244472

1шт.

1

82035824

WIRE HARNESS

MXU115, MECHANICAL ADVANCED, Serial Range: -EKP005254/ACP244472

1шт.

1

82035826

WIRE HARNESS

MXU125, Incl. Ref.5, MECHANICAL ADVANCED, Serial Range: -EKP005232/ACP244472

1шт.

2

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

5шт.

3

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

4

82034584

WIRE HARNESS

MXU110, ENGINE

1шт.

4

82034585

WIRE HARNESS

ENGINE

1шт.

5

82034172

CABLE TIE

CABLE STRAP

1шт.

6

82036572

WIRE HARNESS,120 ohm

CAN TERMINATOR

1шт.

Выбрано товаров: 10
