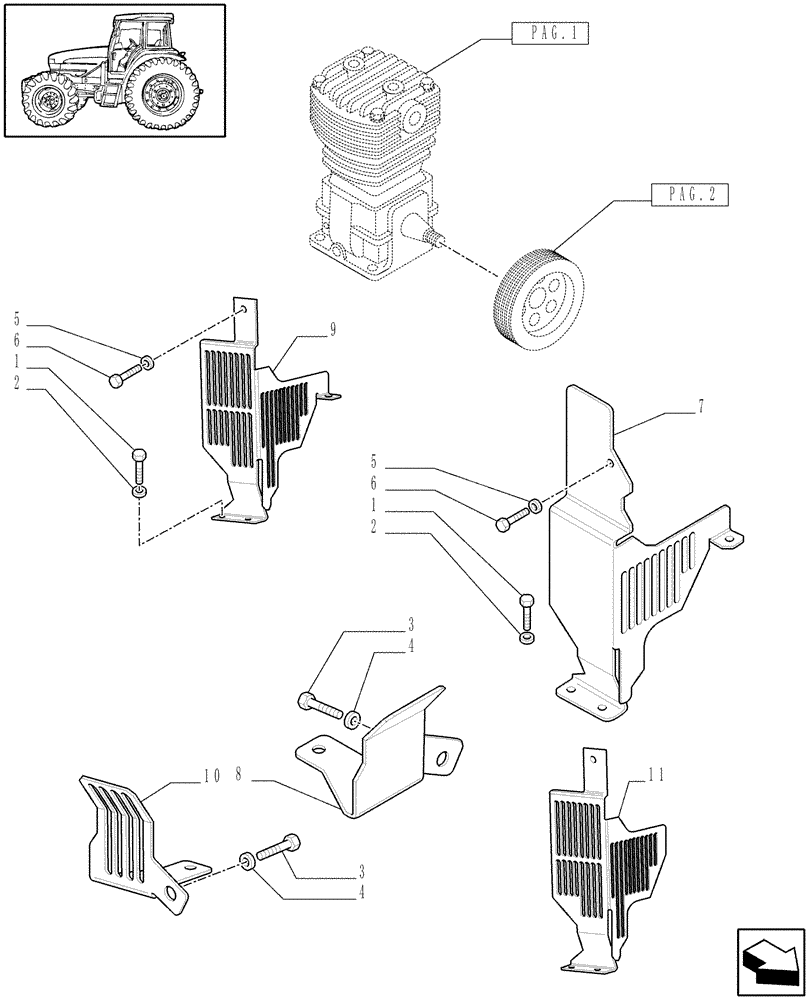

Запчасти Case IH MXU115 (1.68.6/01[03]) - (VAR.178-385/1-385/2) TRAILER AIR BRAKE - SHIELDS - D5287 (05) - REAR AXLE

1

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

2

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

1шт.

4

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

5

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

6

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

7

82033720

GUARD

, Serial Range: -EKP009662

1шт.

8

87364501

GUARD

, Serial Range: -EKP009662

1шт.

9

87541646

GUARD

, Serial Range: EKP009663-C5528

1шт.

10

87541648

GUARD

, Start Serial: EKP009663

1шт.

11

87590018

GUARD

, Serial Range: D5528-C5978

1шт.

11

87477900

GUARD

, Start Serial: D5978

1шт.
