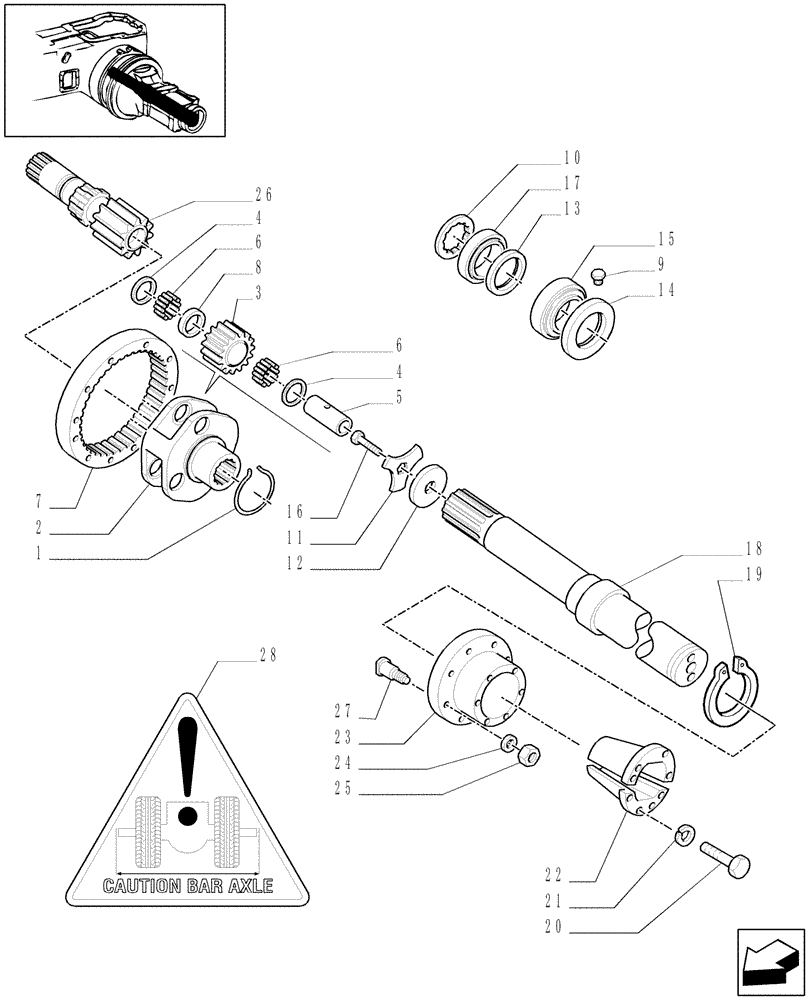

Запчасти Case IH MXU115 (1.48.1/02) - (VAR.437) 98" LONG AXLE FOR STEEL DISK - SIDE REDUCER GEARINGS (05) - REAR AXLE

1

4998880

SNAP RING,4mm Thk, Ext

D=135

2шт.

2

47123854

PLANET CARRIER

2шт.

3

47123857

GEAR,28T

6шт.

4

5145983

THRUST WASHER,53.6mm ID x 84mm OD x 1mm Thk

53.6 x 84 x 1

12шт.

5

5145988

PIN

6шт.

6

5145981

ROLLER BEARING,55.5mm ID x 67.5mm OD x 52mm W

6шт.

7

5191492

RING GEAR,69T

2шт.

8

5145984

SPACER

56X67,4X11

6шт.

9

14324014

PLUG

M10

2шт.

10

5152126

THRUST WASHER,64mm ID x 70.5mm OD x 5mm Thk

2шт.

11

5146156

LOCKING PLATE

2шт.

12

4996965

DISC,18.5mm ID x 82mm OD x 8mm Thk

2шт.

13

5152364

OIL SEAL,75mm ID x 95mm OD x 10mm Thk

2шт.

14

5199548

OIL SEAL,95.00mm ID x 130.00mm OD x 16.00mm

2шт.

15

24903490

BEARING ASSY,80mm ID x 125mm OD x 29mm W

80 x 125 x 29

2шт.

16

15984331

BOLT,Hex, M18 x 1.5 x 50mm, Cl 10.9, Full Thd

2шт.

17

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

70 x 110 x 25

2шт.

18

5199541

AXLE,920mm L

98"

2шт.

19

11071376

SNAP RING,M90, Ext

2шт.

20

11125124

BOLT,Hex, M20 x 70, 8.8

12шт.

21

87306816

CONE WASHER,20.00mm ID x 36.00mm OD x 4.50mm

20 x 36 x 4.5

12шт.

22

5198605

BUSHING

2шт.

23

47129817

HUB

2шт.

24

44011091

WASHER,19mm ID x 40mm OD x 6mm Thk

19X40X6

16шт.

25

12164224

NUT,M18 x 1.5, Cl 10

16шт.

26

47123860

DRIVE SHAFT

2шт.

27

87651028

STUD,Wheel, M18 x 1.5 x 65mm, Cl 10.9

16шт.

28

82032066

DECAL

Bar Axle

1шт.
