Запчасти Case IH MXU115 (1.40.0/07) - 4WD FRONT AXLE - DIFFERENTIAL LOCKING (04) - FRONT AXLE & STEERING

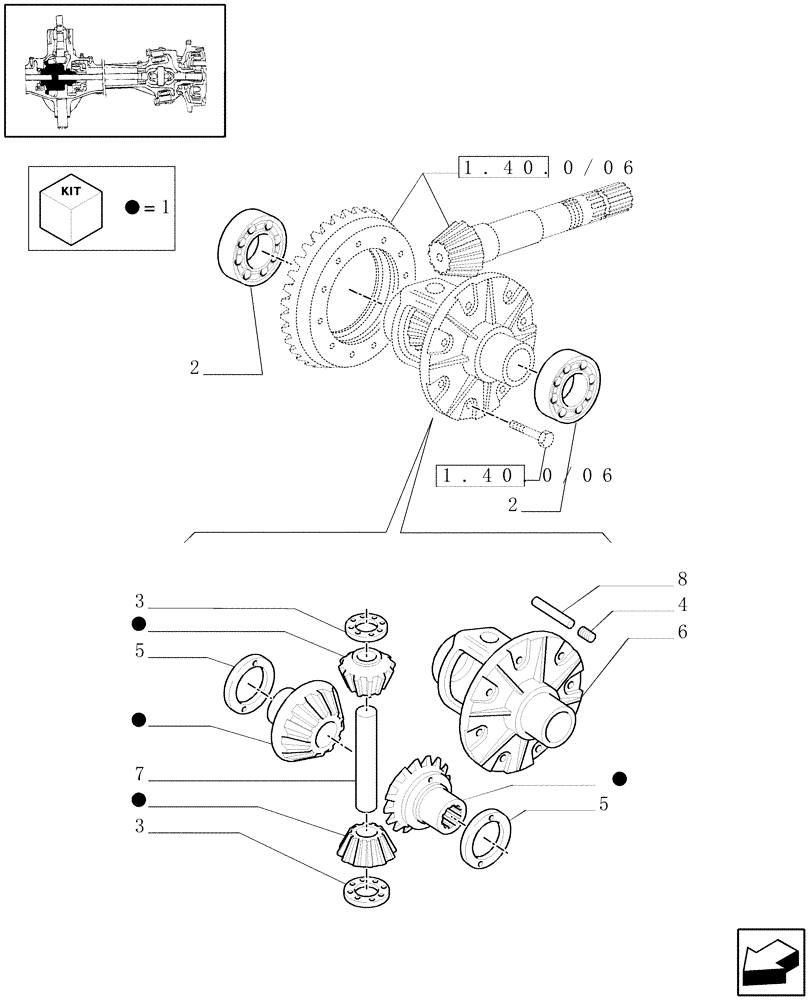

Схема запчастей Case IH MXU115 - (1.40.0/07) - 4WD FRONT AXLE - DIFFERENTIAL LOCKING (04) - FRONT AXLE & STEERING
1
4
1
7
8
1.40.0/06
1
3
5
1
1.40.0/06
5
1
2
2
3
1
6

Артикул

Название

Примечание

Количество

1

47134168

DIFFERENTIAL GEAR

1шт.

2

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

60X95X23

2шт.

3

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

4

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

5

5148936

THRUST WASHER,44mm ID x 66mm OD x 1.6mm Thk

1шт.

5

5148937

THRUST WASHER,44mm ID x 66mm OD x 1.8mm Thk

1шт.

5

5148938

THRUST WASHER,44mm ID x 66mm OD x 1.7mm Thk

1шт.

5

5148939

THRUST WASHER,44mm ID x 66mm OD x 1.5mm Thk

1шт.

5

5148940

THRUST WASHER,44mm ID x 66mm OD x 1.4mm Thk

1шт.

5

5167387

THRUST WASHER,44mm ID x 66mm OD x 1.9mm Thk

1шт.

5

5167388

THRUST WASHER,44mm ID x 66mm OD x 2mm Thk

1шт.

5

5181356

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.1mm T

1шт.

5

5181357

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.2mm T

1шт.

6

5174842

HOUSING

1шт.

7

5148935

PIN,24mm OD x 144mm L

1шт.

8

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

Выбрано товаров: 16
