Запчасти Case IH MXU115 (1.32.8/04[03]) - (VAR.831-831/1) CCLS WITH 2 MECHANICAL CONTROL VALVE - PUMPS FOR HYDRAULIC SYSTEM AND LIFT (03) - TRANSMISSION

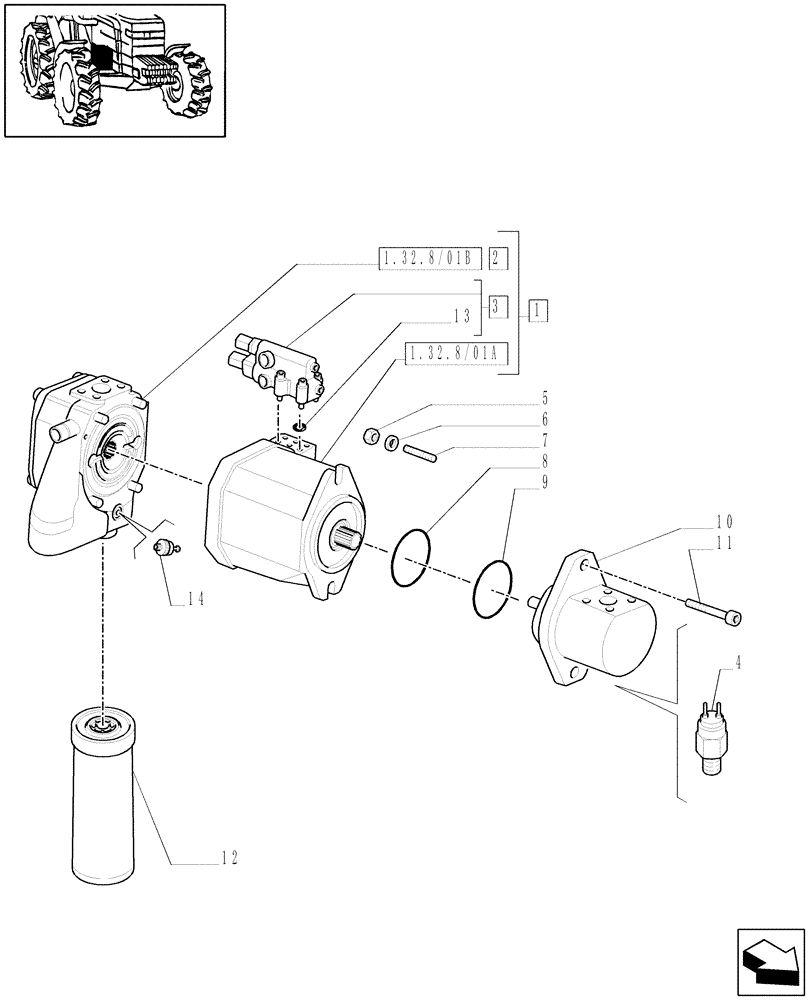

Схема запчастей Case IH MXU115 - (1.32.8/04[03]) - (VAR.831-831/1) CCLS WITH 2 MECHANICAL CONTROL VALVE - PUMPS FOR HYDRAULIC SYSTEM AND LIFT (03) - TRANSMISSION
8
1.32.8/01b
11
5
4
14
9
13
6
1
12
1.32.8/01a
2
7
10
3

Артикул

Название

Примечание

Количество

1

5198694

HYDRAULIC PUMP,45 CC

1шт.

1

5198694R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

1

5198694C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP

1шт.

1

47127050C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP - for N.A. Only

1шт.

2

47127269

PUMP

1шт.

3

47127261

REGULATOR

1шт.

4

5157750

PRESSURE SWITCH

Oil Pressure

1шт.

5

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

2шт.

6

10730821

WASHER,Flat, 14.40mm ID x 26.00mm OD x 3.00mm, R80, ZND

2шт.

7

13555521

STUD

M14X28X35

2шт.

8

14461380

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

9

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

10

5192657

HYDRAULIC PUMP

1шт.

11

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

2шт.

12

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

1шт.

13

47127305

O-RING

3шт.

14

82028130

PRESSURE SWITCH

1шт.

Выбрано товаров: 17
