Запчасти Case IH MXU115 (1.32.8/02[01]) - (VAR.269/1) CCLS FOR TRANSMISSION 24X24 (EDC) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT (03) - TRANSMISSION

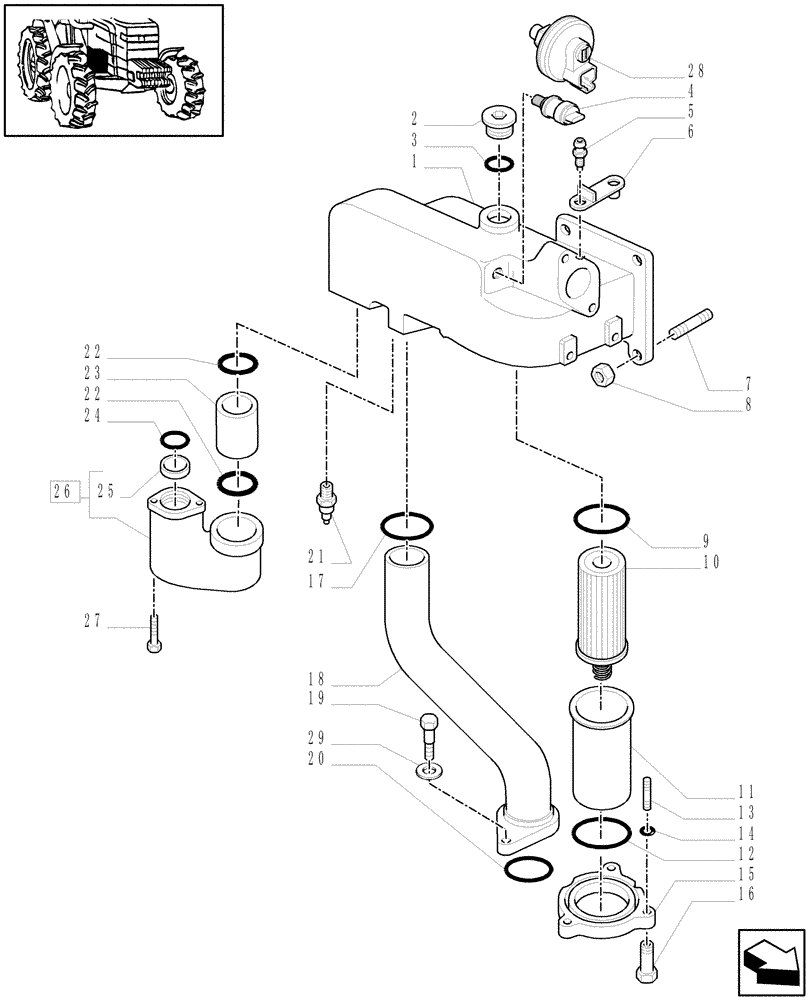

Схема запчастей Case IH MXU115 - (1.32.8/02[01]) - (VAR.269/1) CCLS FOR TRANSMISSION 24X24 (EDC) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT (03) - TRANSMISSION
1
15
21
9
20
27
17
2
11
7
25
28
12
4
26
22
5
23
18
19
6
16
13
14
29
3
8
22
10
24

Артикул

Название

Примечание

Количество

1

5198194

SUPPORT

1шт.

2

10119040

PLUG,M27 x 2 x 20, Brass

1шт.

3

14438185

O-RING,24mm ID x 3mm

1шт.

4

82025340

RESTRICTION SWITCH

Vacuum, Start Serial: C5240

1шт.

5

5153030

BLEED SCREW,Bleeder, Hex, M8 x 1.25 x 25mm

1шт.

6

47129062

PLATE

1шт.

7

13449424

STUD

M10 x 1.5 x 22

3шт.

8

12164714

NUT,M10 x 1.25, Cl 8

3шт.

9

14466480

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

10

47131183

ELEMENT

INCL.9

1шт.

11

5196564

HOUSING

1шт.

12

14466381

O-RING,0.139" Thk x 4.359" ID, -245, Cl 6, 75 Duro

1шт.

13

13517620

STUD

M8X12X50

3шт.

14

13397776

SNAP RING,M16, Int

3шт.

15

5196502

RING

1шт.

16

5196481

NUT,M8 x 1.25

3шт.

17

14471580

O-RING,0.21" Thk x 2.35" ID, -332, Cl 5, 75 Duro

1шт.

18

47128307

TUBE

1шт.

19

87647137

BOLT,Hex, M8 x 1.25 x 29mm, Cl 8.8

1шт.

20

14464481

O-RING,0.139" Thk x 1.984" ID, -226, Cl 7, 75 Duro

1шт.

21

82028134

SWITCH ASSY

Oil Temperature

1шт.

22

14464580

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

23

5196785

TUBE

1шт.

24

14464280

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

25

5198578

RING,42mm ID x 45mm OD x 7.8mm Thk

1шт.

26

5198668

MANIFOLD

1шт.

27

16046031

SCREW,Hex, M8 x 1.25 x 140mm, Cl 10.9

2шт.

28

87303771

PRESSURE SWITCH

Vacuum, Start Serial: D5240

1шт.

29

14496607

WASHER,10.5mm ID x 21mm OD x 2mm Thk

10 x 21

1шт.

Выбрано товаров: 29
