Запчасти Case IH MXU115 (1.32.8[02]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT (03) - TRANSMISSION

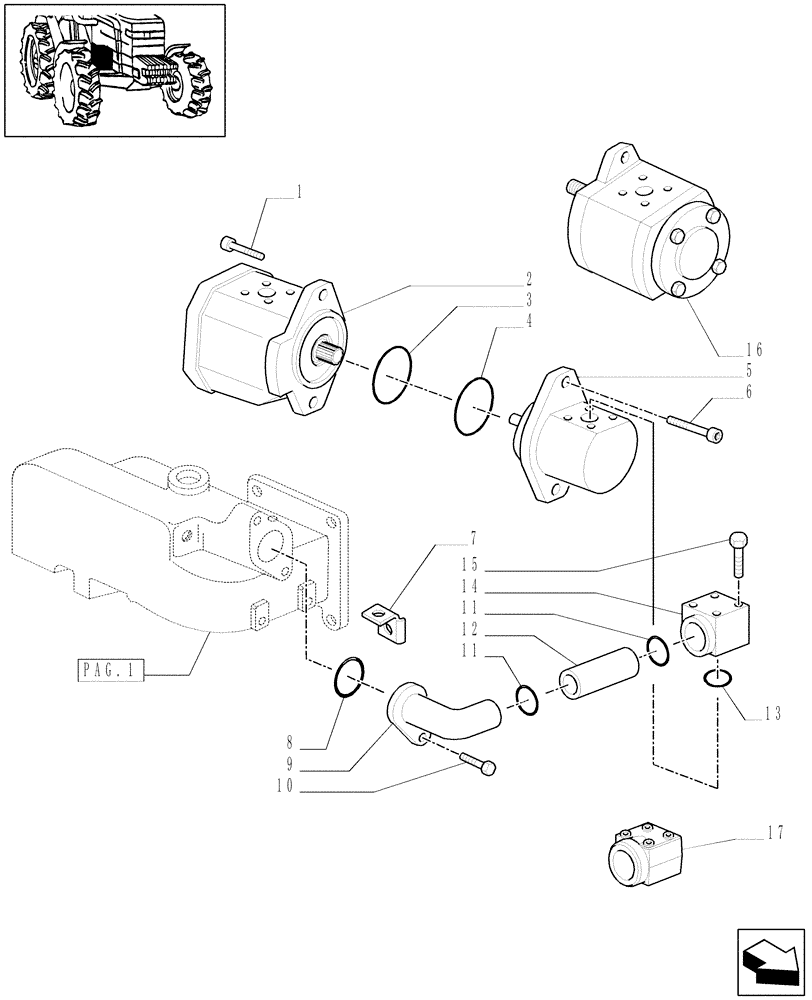

Схема запчастей Case IH MXU115 - (1.32.8[02]) - PUMPS FOR HYDRAULIC SYSTEM AND LIFT (03) - TRANSMISSION
17
pag.1
8
6
7
2
10
11
4
15
9
5
12
14
13
16
3
11
1

Артикул

Название

Примечание

Количество

1

14311721

HEX SOC SCREW,M14 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

2

5192659

HYDRAULIC PUMP,31.94 CC

32CC

1шт.

5192659R

REMAN-HYD PUMP

MXU100, MXU115, MXU125, All (7/03-)

1шт.

5192659C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

14461380

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

4

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

5

5192657

HYDRAULIC PUMP

Steering, Serial Range: -C5966

1шт.

6

14307421

HEX SOC SCREW,M10 x 1.25 x 25mm, Cl 8.8

2шт.

7

82023638

BRACKET

1шт.

8

14463681

O-RING,31.34mm ID x 3.53" Width

1шт.

9

5192920

MANIFOLD

1шт.

10

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

1шт.

11

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

2шт.

12

5192921

TUBE

1шт.

13

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

14

5192922

FLANGE

, Serial Range: -C5966

1шт.

15

10903624

BOLT,Hex, M6 x 50mm, Cl 8.8

4шт.

16

87603409

HYDRAULIC PUMP,16.76 CC

16cc, wit 12x12 and 24x24, Start Serial: D5966

1шт.

17

87602545

COUPLING FLANGE

, Start Serial: D5966

1шт.

Выбрано товаров: 19
