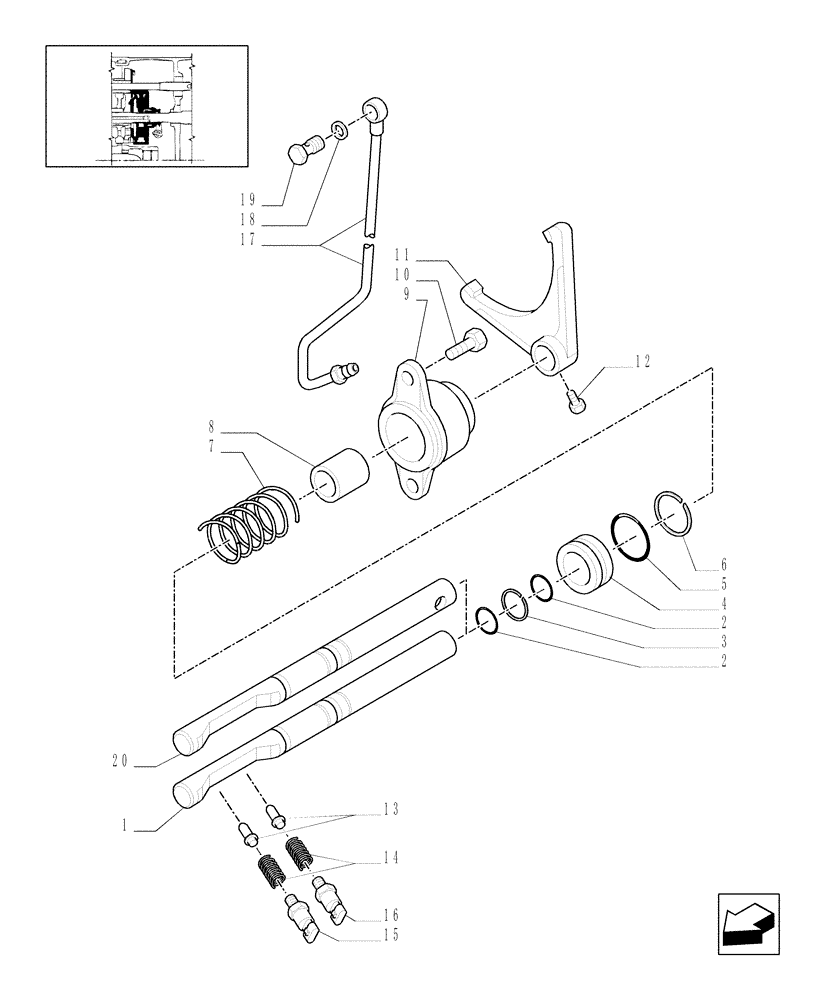

Запчасти Case IH MXU115 (1.32.3/02[02]) - (VAR.100/2) CREEPER TRANSMISSION FOR TRANSMISSION 16X16 - CONTROL REDUCTION (03) - TRANSMISSION

1

47134042

ROD

, Serial Range: -C4929

1шт.

2

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

3

84021874

SNAP RING,M18, Ext

1шт.

4

47134043

SLIPPER

, Serial Range: -C4929

1шт.

4

47137320

PISTON

, Start Serial: D4929

1шт.

5

5160827

SEAL,22.55mm ID x 30.1mm OD x 3.2mm Thk

1шт.

6

5194994

THRUST WASHER

, Serial Range: -C4929

1шт.

7

47133462

SPRING

1шт.

8

5194523

SPACER

1шт.

9

5194527

COVER

1шт.

10

16043531

SCREW,Hex, M8 x 1.25 x 22mm, Cl 10.9, Full Thd

2шт.

11

5194528

SHIFTER FORK

1шт.

12

44013453

SCREW,Hex, M12 x 1.25 x 33mm

1шт.

13

47124364

PIN

2шт.

14

81878966

SPRING,Cylindrical, 11mm OD x 17mm L

2шт.

15

5190442

SWITCH

REVERSE SIGNAL STATUS SENSOR, RED

1шт.

16

5188539

SWITCH

CREEPER/SPLITTER NEUTRAL & REVERSES, YELLOW

1шт.

17

47126718

HYD TUBE

1шт.

18

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

19

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14X1,5

1шт.

20

47137319

ROD

Incl. 4, Start Serial: D4929

1шт.
