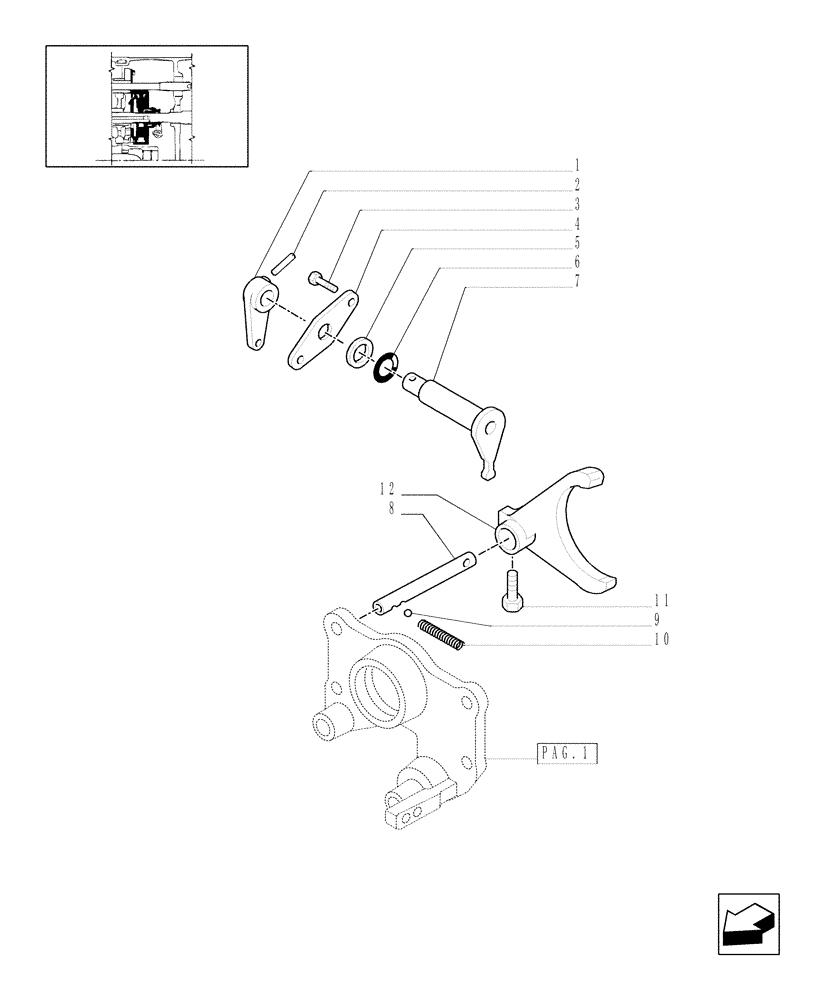

Запчасти Case IH MXU115 (1.32.3/01[02]) - (VAR.100/1) CREEPER TRANSMISSION FOR TRANSMISSION 12X12 - CONTROL REDUCTION (03) - TRANSMISSION

1

47126728

LEVER

1шт.

2

14604274

PIN

6X32

1шт.

3

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

4

47126727

BRACKET

1шт.

5

5101337

WASHER,20.1mm ID x 23.9mm OD x 4mm Thk

1шт.

6

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

7

47126725

ROD

1шт.

8

47126719

ROD

1шт.

9

20063390

BALL,8.73mm OD

1шт.

10

5168268

SPRING,Compression, 8mm OD x 42mm L

1шт.

11

44013453

SCREW,Hex, M12 x 1.25 x 33mm

1шт.

12

47131283

SHIFTER FORK

1шт.
