Запчасти Case IH MXU115 (1.32.0/01) - (VAR.160) DIFFERENTIAL LOCK FOR NON-STRENGTHENED WHEEL AXLE - BOXES, COVERS AND SUPPORTS (03) - TRANSMISSION

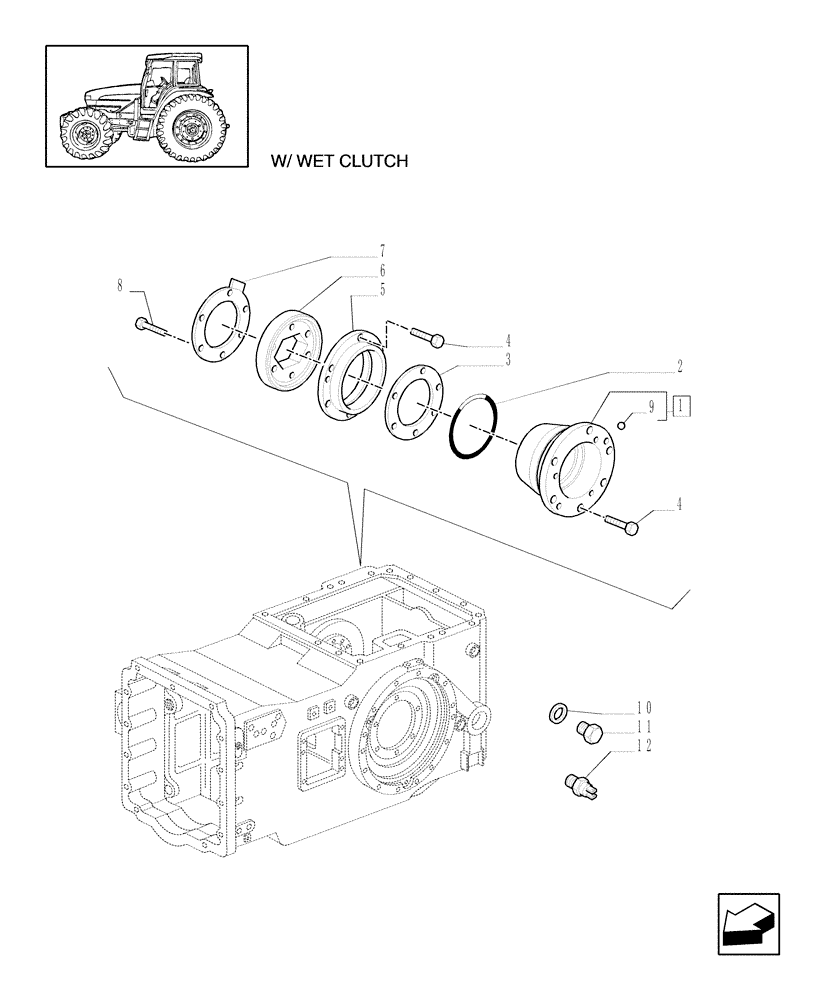

Схема запчастей Case IH MXU115 - (1.32.0/01) - (VAR.160) DIFFERENTIAL LOCK FOR NON-STRENGTHENED WHEEL AXLE - BOXES, COVERS AND SUPPORTS (03) - TRANSMISSION
12
9
11
2
4
8
5
10
4
1
3
7
6

Артикул

Название

Примечание

Количество

1

5191883

SUPPORT

LH

1шт.

2

14461981

O-RING,5.487" ID x 0.103" Width

2,62X139,4

1шт.

3

5191878

SHIM,0.150mm Thk

1шт.

3

5191880

SHIM,0.200mm Thk

1шт.

3

5191881

SHIM,0.500mm Thk

1шт.

4

14233624

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

12шт.

5

5198628

SUPPORT

RH

1шт.

6

5198598

RING NUT,Lock, M125 x 2

M125X2

1шт.

7

5198626

RING

1шт.

8

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

9

20063460

BALL,7.14mm OD, Gr 100

DIA=7.144

2шт.

10

10261260

SEALING WASHER,M14.2 x 22 x 1.5, Copper

1шт.

11

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

12

5115055

SWITCH ASSY

Trans. Oil

1шт.

Выбрано товаров: 14
