Запчасти Case IH MXU115 (1.29.9/03[02]) - (VAR.085-087) 16X16 (SPS) W/P. SHUTTLE & ADV. HARNESS - GEARBOX CLUTCH HOUSING COVER (03) - TRANSMISSION

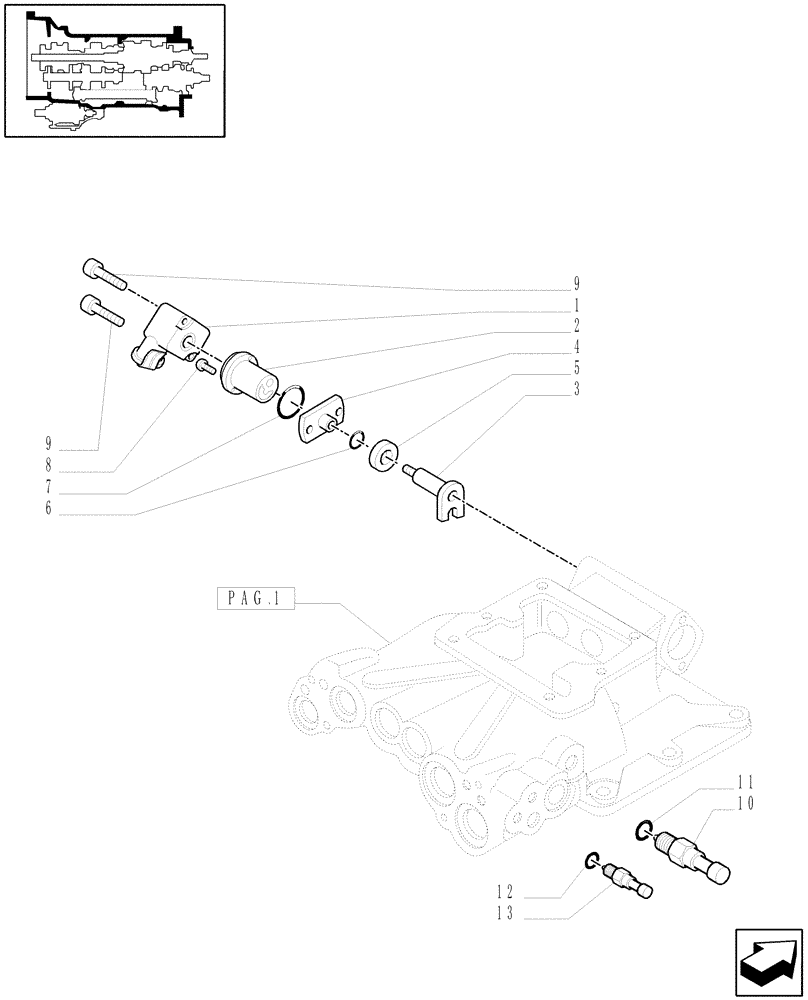

Схема запчастей Case IH MXU115 - (1.29.9/03[02]) - (VAR.085-087) 16X16 (SPS) W/P. SHUTTLE & ADV. HARNESS - GEARBOX CLUTCH HOUSING COVER (03) - TRANSMISSION
3
2
7
1
4
13
9
a
10
11
8
p
5
12
g
6
.
9
1

Артикул

Название

Примечание

Количество

1

82033385

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

2шт.

2

47135914

HOUSING

2шт.

3

5178335

SHAFT,12mm OD x 48.5mm L

2шт.

4

5178541

PLATE

2шт.

5

14499601

WASHER,13mm ID x 20mm OD x 2.5mm Thk

2шт.

6

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

7

14464280

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

(M44.01 ID x 3.53 Thk)

2шт.

8

13274411

SCREW,Pozidriv Pan Hd, M5 x 20mm

2шт.

9

13275221

SCREW,Pozdriv Pan Hd, M5 x 50mm, Cl 8.8

1шт.

10

82020682

SWITCH ASSY

1шт.

11

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

82020683

SWITCH ASSY

1шт.

Выбрано товаров: 13
