Запчасти Case IH MXU115 (1.29.9/02[02]) - (VAR.129-140-147) TRANSMISSION 16X16 (SPS) - GEARBOX CLUTCH HOUSING COVER (03) - TRANSMISSION

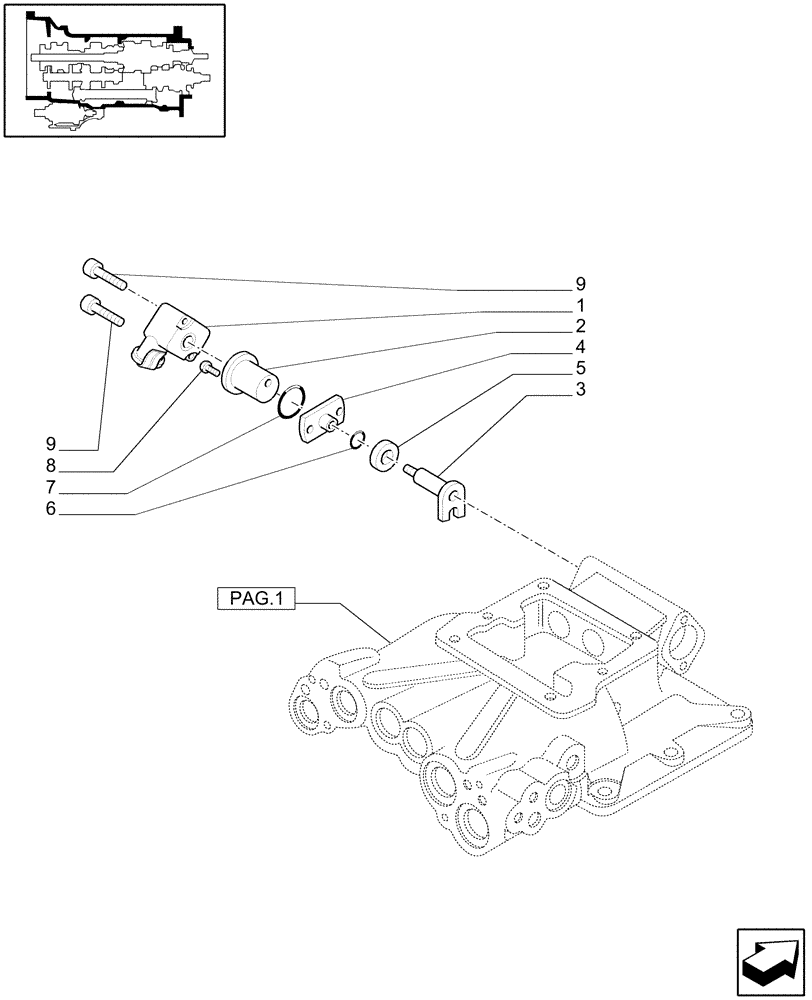

Схема запчастей Case IH MXU115 - (1.29.9/02[02]) - (VAR.129-140-147) TRANSMISSION 16X16 (SPS) - GEARBOX CLUTCH HOUSING COVER (03) - TRANSMISSION
3
9
4
6
7
pag.1
2
5
8
9
1

Артикул

Название

Примечание

Количество

1

82033385

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

2шт.

2

82015197

HOUSING

2шт.

3

5178335

SHAFT,12mm OD x 48.5mm L

2шт.

4

5178541

PLATE

2шт.

5

14499601

WASHER,13mm ID x 20mm OD x 2.5mm Thk

2шт.

6

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

7

80510120

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

3,53X44,01

2шт.

8

13274411

SCREW,Pozidriv Pan Hd, M5 x 20mm

2шт.

9

13275221

SCREW,Pozdriv Pan Hd, M5 x 50mm, Cl 8.8

1шт.

Выбрано товаров: 9
