Запчасти Case IH MXU115 (1.29.0/02) - (VAR.129-140-147) TRANSMISSION 16X16 (SPS) - INTERNAL SHIFTING CONTROLS (03) - TRANSMISSION

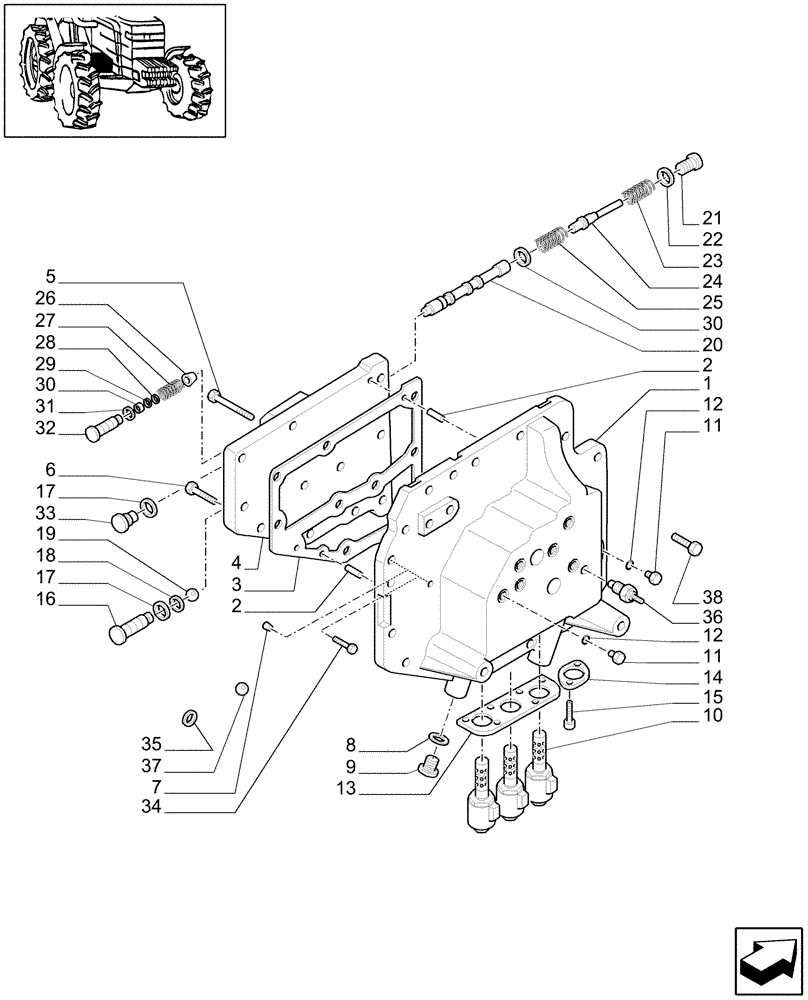

Схема запчастей Case IH MXU115 - (1.29.0/02) - (VAR.129-140-147) TRANSMISSION 16X16 (SPS) - INTERNAL SHIFTING CONTROLS (03) - TRANSMISSION
8
12
19
22
35
2
25
12
14
11
11
27
38
1
3
2
15
32
33
9
5
28
20
36
17
4
29
13
37
6
30
10
17
24
16
34
23
31
7
26
21
18
30

Артикул

Название

Примечание

Количество

1

47132363

COVER

1шт.

2

82969407

PIN

2шт.

3

82012862

GASKET,1mm Thk

gasket does not have large openings as artwork displays, it's actually solid with numerous small holes and openings

1шт.

4

82021821

VALVE BODY

1шт.

5

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

6

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

9шт.

7

82001857

RESTRICTOR

4шт.

8

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

9

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

10

5196873

SOLENOID VALVE

4шт.

11

89672438

PLUG

8шт.

12

80165202

O-RING

8шт.

13

5198334

PLATE

1шт.

14

5194826

BRACKET

1шт.

15

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

16

82001887

VALVE

1шт.

17

80128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

18

83925620

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

19

82001888

BALL

1шт.

20

82001886

SPOOL

1шт.

21

86512512

PLUG,7/8" - 14 ORB

1шт.

22

80167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

82001884

SPRING

1шт.

24

82001883

STOP

1шт.

25

82001882

SPRING

1шт.

26

82001890

POPPET

1шт.

27

82001891

SPRING

1шт.

28

82001893

SHIM

3шт.

29

82001894

SHIM

1шт.

30

82024902

WASHER

1шт.

31

80229317

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

32

82024901

PLUG

1шт.

33

81872019

PLUG

1шт.

34

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

16шт.

35

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

.500X0,70

4шт.

36

82028133

SENSOR,3/8"-18

1шт.

37

82895053

BALL

3/8

5шт.

38

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 38
