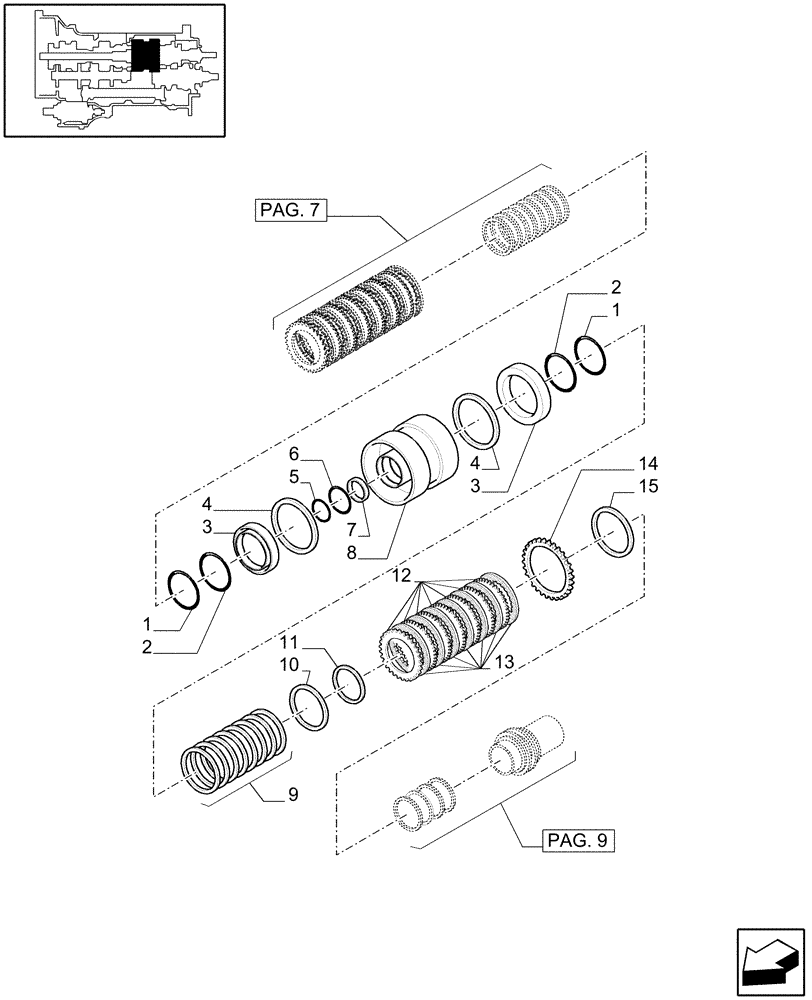

Запчасти Case IH MXU115 (1.28.1/03[08]) - (VAR.129-140-147) 16X16 (SPS) GEARBOX - CLUTCH PLATE HOUSING (03) - TRANSMISSION

1

81865529

SPACER,100.2mm ID x 112.3mm OD x 1.5mm L

2шт.

2

81866186

SEAL,90.28mm ID x 100.28mm OD x 4.8mm Thk

2шт.

3

47126916

PISTON

2шт.

4

81865036

SEAL,131.70mm ID x 6.10mm Thk

2шт.

5

81863364

CIRCLIP

1шт.

6

82935813

SNAP RING

1шт.

7

81864036

BEARING ASSY,69.98mm ID x 89.98mm OD x 9.85mm W

1шт.

8

82036853

CLUTCH HOUSING

1шт.

9

81864187

SPRING

8шт.

10

81865531

RETAINER,100.2mm ID x 112.4mm OD x 4mm Thk

1шт.

11

81865530

CIRCLIP

1шт.

12

5199723

CLUTCH PLATE

MM.1,8 Thk

1шт.

12

5199724

CLUTCH PLATE

MM.2 Thk

1шт.

13

5199725

CLUTCH PLATE

, Serial Range: -C5930

9шт.

13

87704110

CLUTCH PACK

, Start Serial: D5930

9шт.

14

82002243

CLUTCH DRIVING PLATE

1шт.

15

81863363

SNAP RING

1шт.
