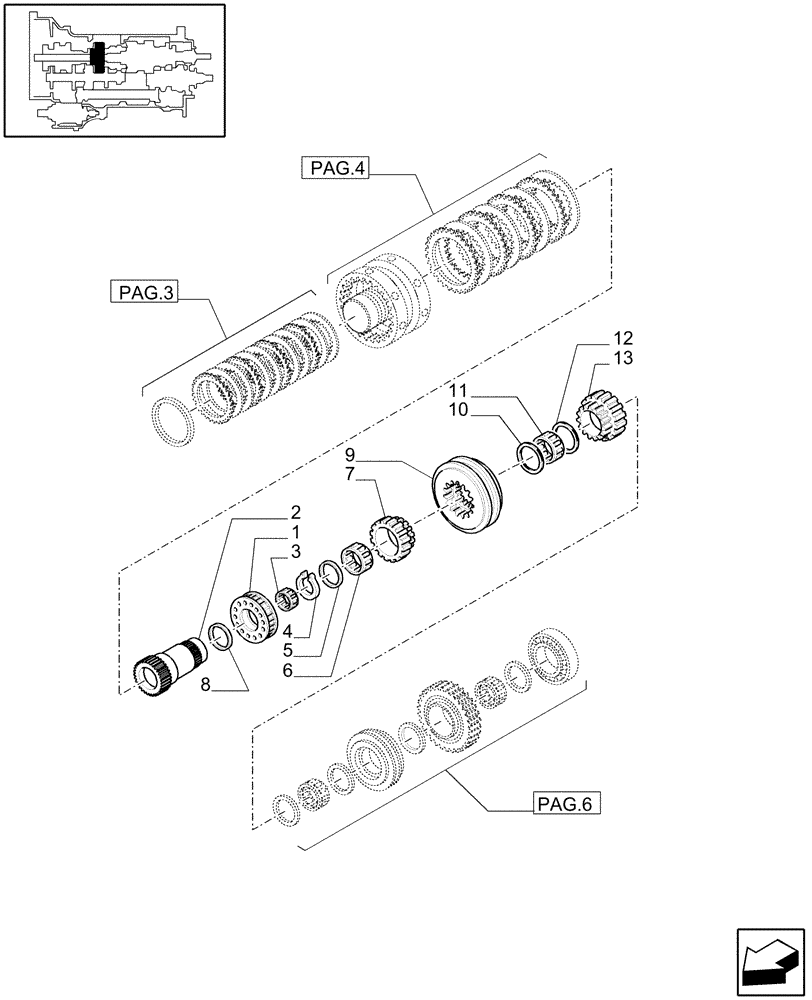

Запчасти Case IH MXU115 (1.28.1/03[05]) - (VAR.129-140-147) 16X16 (SPS) GEARBOX - SHUTTLE SYNCHRONIZER AND ASSOCIATED PARTS (03) - TRANSMISSION

1

5182640

BALL BEARING,65mm ID x 120mm OD x 23mm W

1шт.

2

87396945

SHAFT

1шт.

3

81863099

BEARING ASSY,35mm ID x 45mm OD x 19.8mm W

2шт.

4

11070076

SNAP RING,M65, Ext

1шт.

5

47126730

WASHER

1шт.

6

81863566

BEARING ASSY,59.99mm ID x 65mm OD x 29.8mm W

1шт.

7

47126624

DRIVEN GEAR

REVERSE

1шт.

8

82012540

THRUST WASHER,35mm ID x 52mm OD x 2.5mm Thk

1шт.

9

47125188

SYNCHRONIZER

D= 109/116

1шт.

9

47124378

SYNCHRONIZER

Standard Double Synchro

1шт.

10

81864253

CIRCLIP

1шт.

11

81863567

BEARING ASSY,55mm ID x 65mm OD x 17.8mm W

1шт.

12

47126700

SNAP RING

D=55

1шт.

13

47126622

GEAR

1шт.
