Запчасти Case IH MXU115 (1.27.4[01A]) - HI-LO TRANSMISSION ENGAGEMENT CONTROL - D5275 - C5276 (03) - TRANSMISSION

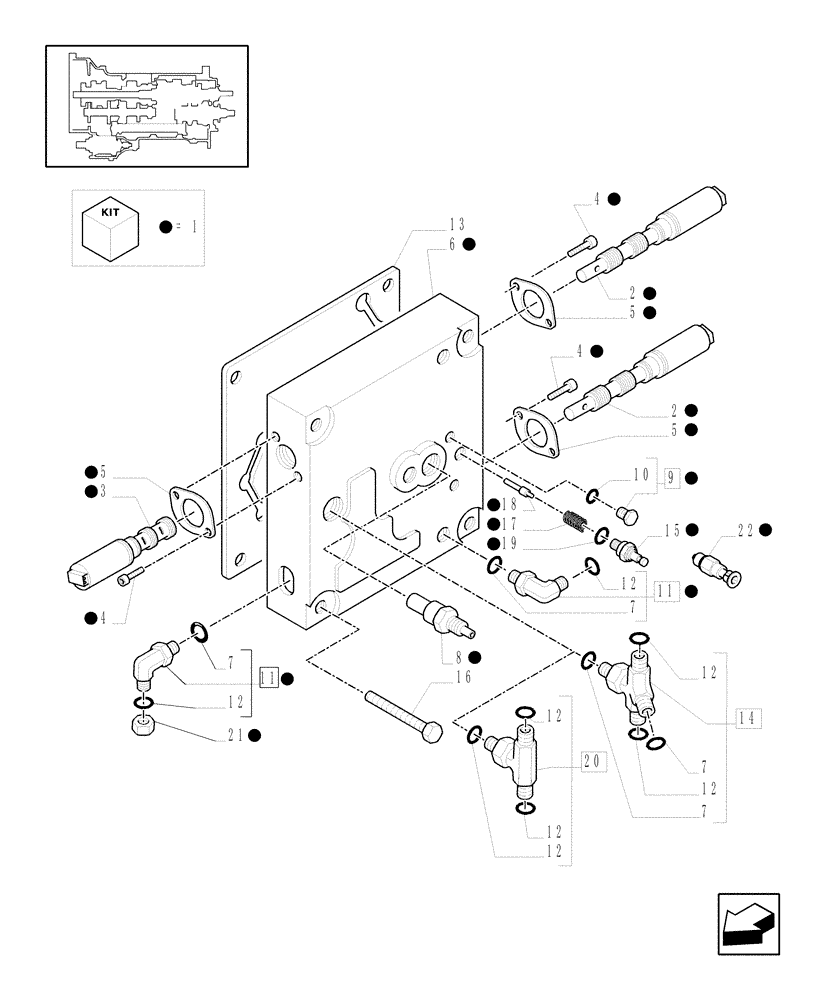

Схема запчастей Case IH MXU115 - (1.27.4[01A]) - HI-LO TRANSMISSION ENGAGEMENT CONTROL - D5275 - C5276 (03) - TRANSMISSION
12
4
16
5
7
1
14
12
1
7
1
1
17
1
8
1
7
12
1
1
13
18
1
2
7
21
19
12
1
4
1
3
6
1
1
1
11
1
12
11
10
2
1
15
22
12
12
1
1
20
9
5
1
4
5

Артикул

Название

Примечание

Количество

1

5198441

CONTROL VALVE

1шт.

2

5196873

SOLENOID VALVE

2шт.

3

84273815

SOLENOID VALVE,12V DC, 7.3Ohm

Black Connectors

1шт.

4

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

6шт.

5

5194826

BRACKET

3шт.

6

5197921

BODY

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

8

82028133

SENSOR,3/8"-18

Trans. Temp.

1шт.

9

82857995

PLUG,7/16" - 20 ORB

2шт.

10

82857994

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

2шт.

11

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

M18X1,5, 13/16-16

3шт.

12

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

7шт.

13

47136108

GASKET

1шт.

14

47134056

TEE

M18X1,5, 13/16-16

1шт.

For MXU100, MXU110, MXU115, MXU125 W/VAR.269/1-831 and for MXU135

1шт.

15

82020683

SWITCH ASSY

Shift Rail Position, Grey, Serial Range: -C5246

1шт.

16

86977775

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

5шт.

17

81878966

SPRING,Cylindrical, 11mm OD x 17mm L

1шт.

18

47137634

PLUNGER

1шт.

19

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

1шт.

20

87303364

TEE

13/16"-16, M18x1.5

1шт.

For MXU100, MXU110, MXU115, MXU125

1шт.

21

47123020

PLUG,Hex

1шт.

22

87369251

SWITCH ASSY

Grey, Start Serial: D5246

1шт.

Выбрано товаров: 24
