Запчасти Case IH MXU115 (1.21.3/01[02]) - (VAR.309/1) 4WD FRONT AXLE WITH SUSPENSIONS AND TERRALOCK, BRAKES - CYLINDER AND RELEVANT PARTS (03) - TRANSMISSION

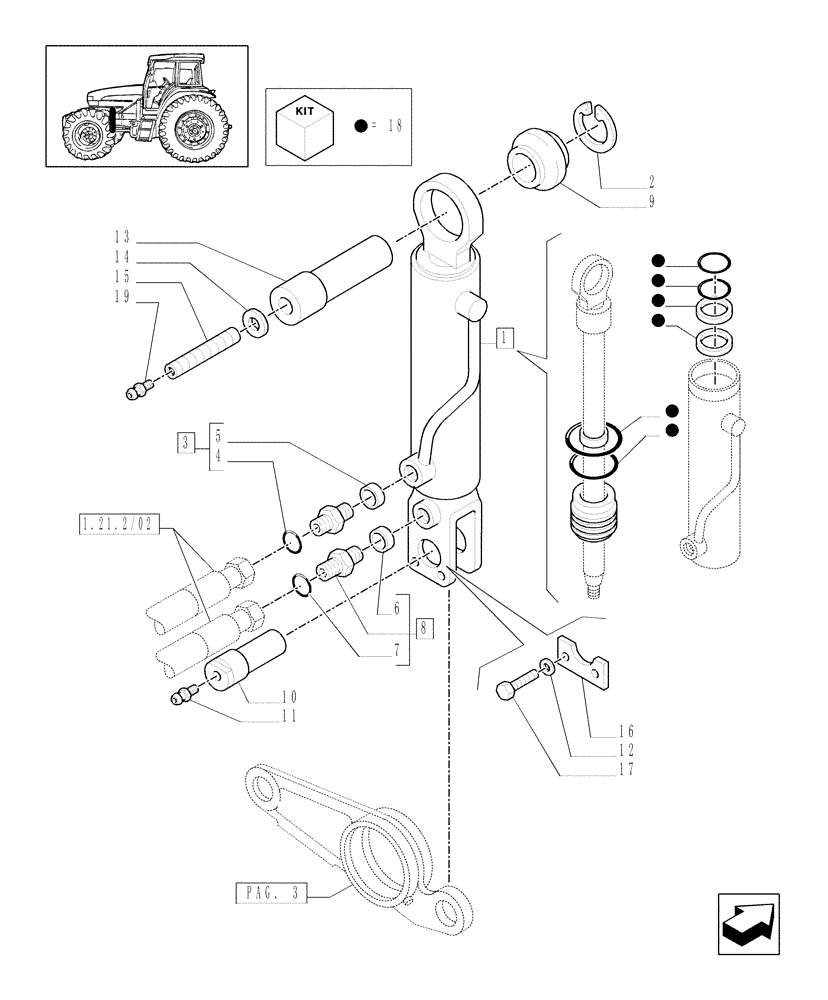

Схема запчастей Case IH MXU115 - (1.21.3/01[02]) - (VAR.309/1) 4WD FRONT AXLE WITH SUSPENSIONS AND TERRALOCK, BRAKES - CYLINDER AND RELEVANT PARTS (03) - TRANSMISSION
3
4
9
1
7
18
10
14
18
1.21.2/02
pag. 3
2
18
12
18
13
19
16
8
6
5
18
18
11
17
18
15

Артикул

Название

Примечание

Количество

1

82031294

CYLINDER

INCL.2,3,4,5,6,7,8,9

1шт.

2

11060676

CIRCLIP,M55, Int

1шт.

3

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

1шт.

4

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

500X .070

1шт.

5

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

6

82019813

SEAL,23.9mm ID x 29.2mm OD x 1.5mm Thk

1шт.

7

89991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

314X .070

1шт.

8

82019639

HYD CONNECTOR

1шт.

9

5179416

SPHERICAL BEARING,30mm ID x 55mm OD x 32mm W

1шт.

10

82032821

PIN

1шт.

11

13406711

LUBE NIPPLE

1шт.

12

85700672

LOCK WASHER,M10

2шт.

13

82032822

PIN

1шт.

14

12646204

WASHER,8.15mm ID x 35mm OD x 3mm Thk

1шт.

15

83991792

BOLT

1шт.

16

82016870

BRACKET

1шт.

17

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

18

82029073

SEAL KIT

1шт.

19

87414

LUBE NIPPLE,1/4" - 28

1шт.

Выбрано товаров: 19
