Запчасти Case IH MXU115 (1.21.2/01[02]) - (VAR.309/1) 4WD FRONT AXLE WITH SUSPENS. WITH TERRALOCK, BRAKES - PIPES VALVE AND CYLINDER (03) - TRANSMISSION

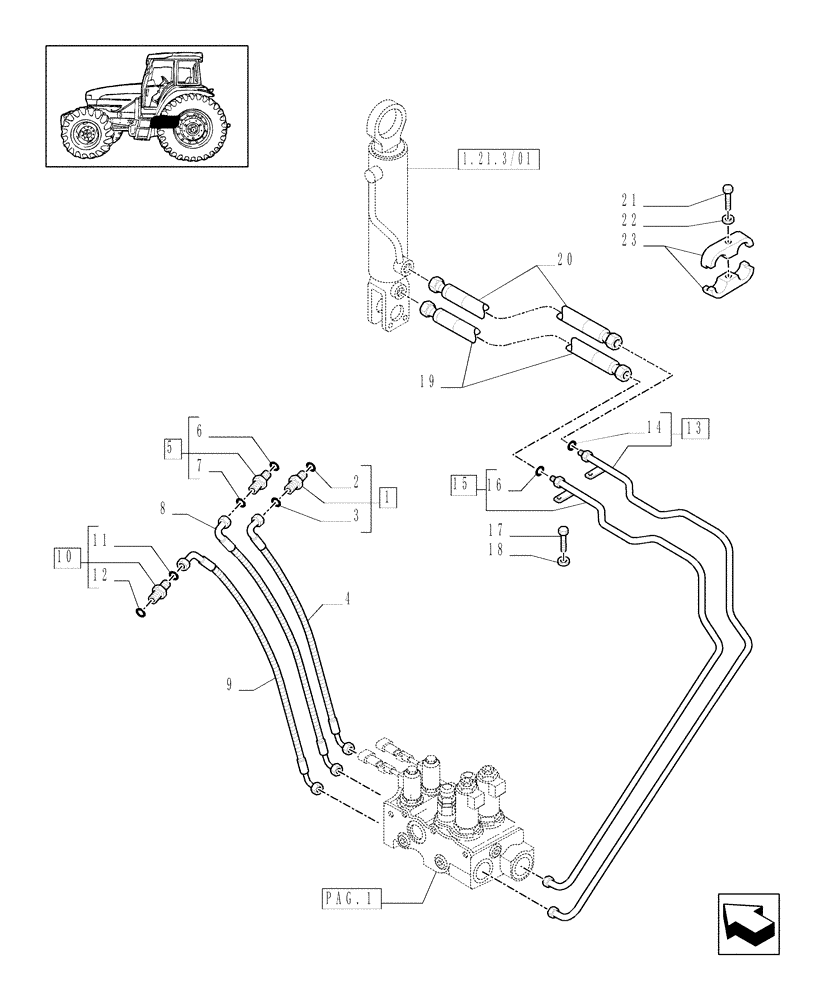

Схема запчастей Case IH MXU115 - (1.21.2/01[02]) - (VAR.309/1) 4WD FRONT AXLE WITH SUSPENS. WITH TERRALOCK, BRAKES - PIPES VALVE AND CYLINDER (03) - TRANSMISSION
1
2
23
9
20
7
10
13
5
18
3
6
12
15
19
16
22
14
8
17
21
4
1.21.3/01
11
pag.1

Артикул

Название

Примечание

Количество

1

82016497

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5

1шт.

2

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

3

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

87368096

FLEXIBLE HOSE

MM.600, 13/16"-16

1шт.

5

47126401

HYD CONNECTOR

11/16"-16, M22X1,5

1шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

7

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

8

47132835

FLEXIBLE HOSE

MM.1100, 11/16"-16

1шт.

9

47135604

FLEXIBLE HOSE

MM.600, 9/16"-18

1шт.

10

5185045

HYD CONNECTOR

9/16"-18, M12X1,5

2шт.

11

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

12

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

13

47133288

HYD TUBE

1-3/16"-15, 12

1шт.

14

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

15

47133285

HYD TUBE

1"-14, 13/16"-16

1шт.

16

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

17

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

18

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

1шт.

19

82036849

FLEXIBLE HOSE

MM.985, 13/16"-16, MXU100, MXU110

1шт.

19

82036851

FLEXIBLE HOSE

MM.1225, 13/16"-16, MXU115, MXU125, MXU135

1шт.

20

82036848

FLEXIBLE HOSE

MM.1035, 1-3/16"-12, MXU100, MXU110

1шт.

20

82036850

FLEXIBLE HOSE

MM.1275, 1-3/16"-12, MXU115, MXU125, MXU135

1шт.

21

11107621

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

22

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

23

82022172

CLAMP,2 Hoses

2шт.

Выбрано товаров: 25
