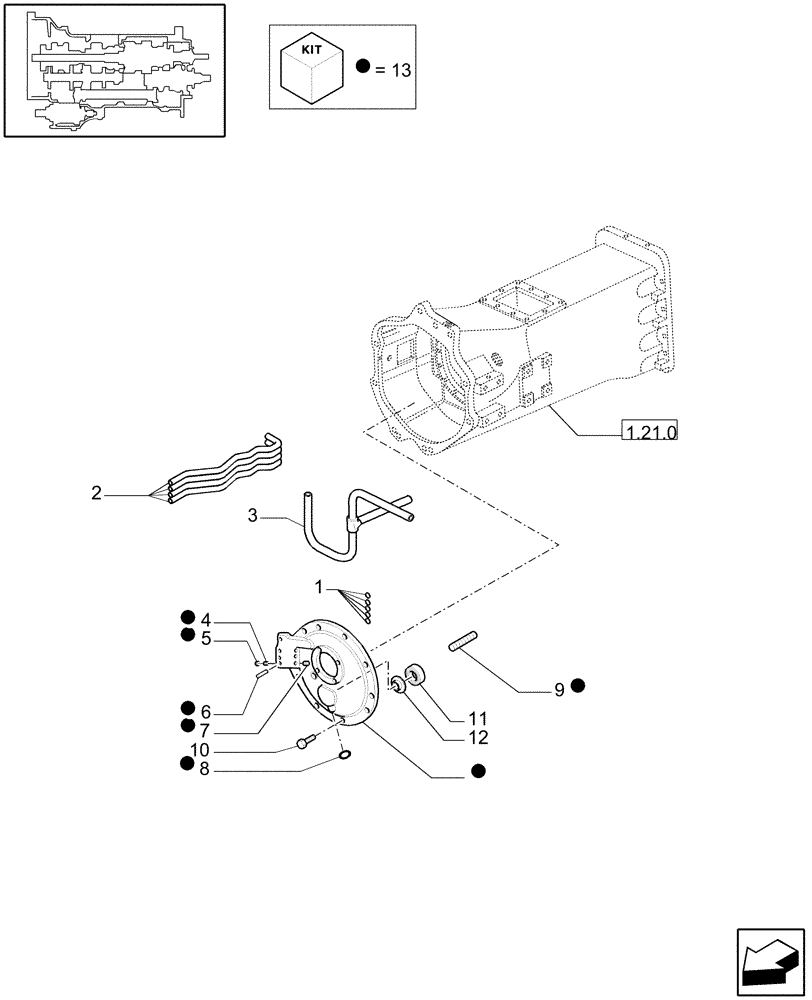

Запчасти Case IH MXU115 (1.21.0/01[01]) - (VAR.129-140-147) 16X16 (SPS) GEARBOX - PIPES AND FRONT COVER - C5890 (03) - TRANSMISSION

1

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

2

5199153

TUBE

For Clutch Int.

4шт.

3

47126778

TUBE

1шт.

For Oil Transfer Transmission Out Put Bearing

1шт.

4

81863424

PLUG

4шт.

5

81869801

SEAL

4шт.

6

81865204

GROOVED PIN,12.7mm OD x 57.15mm L

4шт.

7

81863108

SEAL

4шт.

8

81863105

SEAL

1шт.

9

83980528

DOWEL,12.71mm OD x 20.57mm L

2шт.

10

11227924

BOLT,Hex, M10 x 1.25 x 28, 8.8, Full Thd

8шт.

11

47127105

BEARING, ROLLER, CYL,25mm ID x 52mm OD x 18mm W

1шт.

12

81863544

INSULATOR

1шт.

13

47127182

COVER

1шт.
