Запчасти Case IH MXU115 (1.21.0[01]) - CLUTCH BOX TRANSMISSION & RELATED PARTS (03) - TRANSMISSION

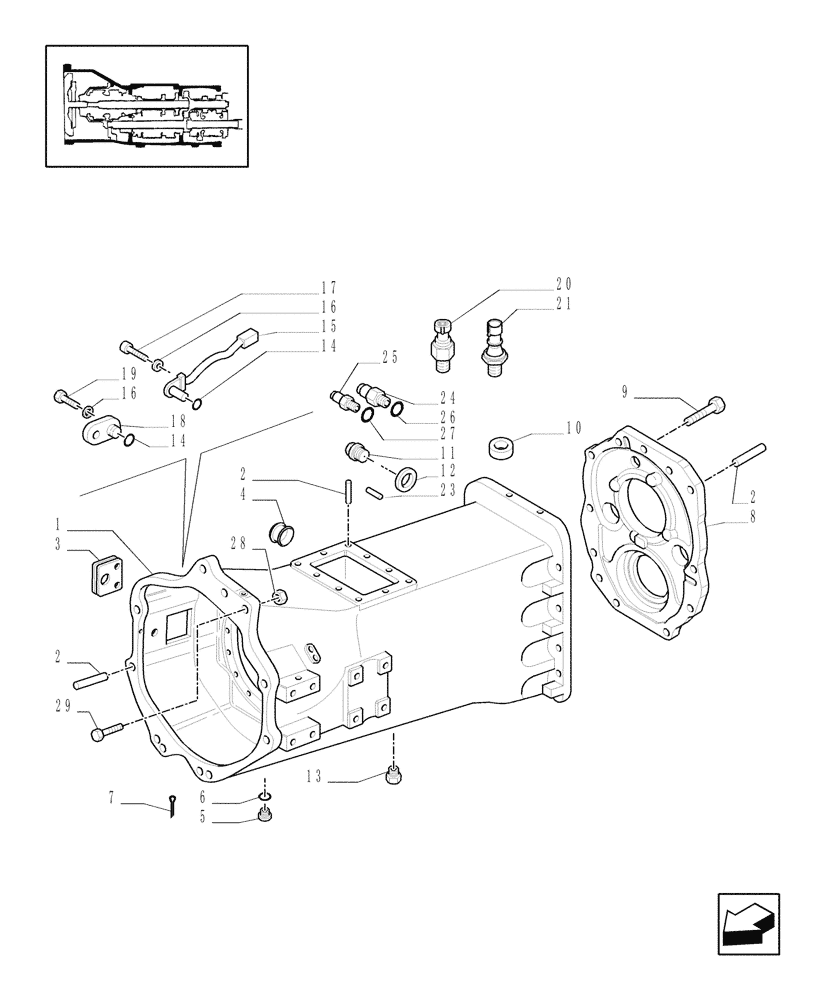

Схема запчастей Case IH MXU115 - (1.21.0[01]) - CLUTCH BOX TRANSMISSION & RELATED PARTS (03) - TRANSMISSION
2
26
14
9
20
14
11
19
17
24
13
16
8
7
10
18
1
29
27
5
28
3
16
15
2
21
23
25
2
6
4
12

Артикул

Название

Примечание

Количество

1

47132498

TRANSMISSION HOUSING

1шт.

1

47132500

TRANSMISSION HOUSING

16X16 (SPS)

1шт.

2

83980528

DOWEL,12.71mm OD x 20.57mm L

8шт.

3

82008251

GROMMET

1шт.

3

81878975

GROMMET,82mm

MXU100, MXU115

1шт.

W/Trans.12X12, VAR.110-120

1шт.

4

81878978

GROMMET

2шт.

5

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

6

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

7

10798204

COTTER PIN,M6.3 x 32

1шт.

8

5195012

RETAINER

INCL.2

1шт.

9

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

10шт.

10

14328701

PLUG,M20, Tapered

2шт.

11

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

2шт.

12

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

2шт.

13

14282370

PLUG,M25, Tapered, Stainless

MXU135

1шт.

13

10269801

PLUG,Cyl, M22 x 1.5mm

M22X1,5, MXU135

1шт.

14

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

3 x 17.2

1шт.

15

84169162

SENSOR

Speed, Hall Effect, High Sens, MXU110, MXU125, MXU135

1шт.

W/Trans 16X16 Economy (VAR122) Is Valid For MXU100, MXU115

1шт.

16

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

17

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

18

5164036

PLUG

MXU100, MXU115, Serial Range: -C5083

1шт.

18

87307348

PLUG,18mm ID

MXU100, MXU115, Start Serial: D5083

1шт.

For less sensor booster version only

1шт.

19

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

1шт.

20

82028134

SWITCH ASSY

Oil Temperature

1шт.

21

82028130

PRESSURE SWITCH

Oil Pressure, Serial Range: -C5212

1шт.

21

87564684

SWITCH ASSY

Oil Pressure, Start Serial: D5212

1шт.

22

86505157

DOWEL,1/2" x 1"

2шт.

23

81863708

PIN

12,7x30, W/Trans. 16X16 (SPS)

2шт.

24

82020682

SWITCH ASSY

Shift Rail Position, Black, W/Trans. 16X16 (SPS)

1шт.

24

82018879

SWITCH ASSY

Shift Rail Position, Black, W/Trans. 24X24 (SPS)

1шт.

W/Trans 24X24 (VAR121) Is Valid For MXU135

1шт.

25

82020683

SWITCH ASSY

Shift Rail Position, Grey, W/Trans. 16X16 (SPS)

1шт.

25

82018880

SWITCH ASSY

Shift Rail Position, Grey, W/Trans. 24X24 (SPS)

1шт.

W/Trans 24X24 (VAR121) Is Valid For MXU135

1шт.

26

89617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

W/Trans. 16X16 (SPS)

1шт.

26

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

W/Trans. 24X24 (SPS)

1шт.

27

80128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

W/Trans. 16X16 (SPS)

1шт.

27

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

W/Trans. 24X24 (SPS)

1шт.

28

12164124

NUT,M16 x 1.5, Cl 8

2шт.

29

15982124

BOLT,Hex, M16 x 1.5 x 140mm, Cl 8.8

4шт.

29

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

2шт.

29

15981234

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

3шт.

29

15981524

BOLT,Hex, M16 x 1.5 x 90mm, Cl 8.8

2шт.

Выбрано товаров: 46
