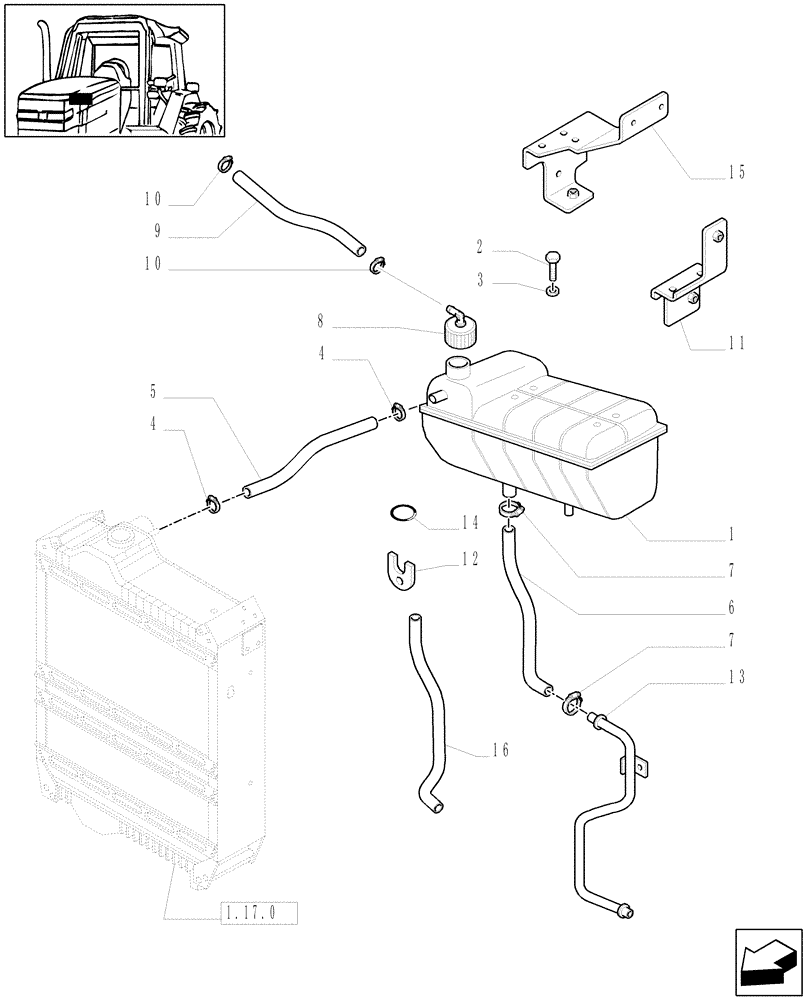

Запчасти Case IH MXU115 (1.17.2) - COOLING - EXPANSION TANK (02) - ENGINE EQUIPMENT

1

82019583

RESERVOIR, COOLANT E

1шт.

Components not seviced separately

1шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

7шт.

2

82030227

SELF-TAP SCREW,Hex, M6 x 1 x 12mm

M6X12

1шт.

3

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

7шт.

4

82039342

COLLAR

13 - 20

2шт.

5

82033793

RADIATOR HOSE,9.00 mm ID x 445.00 mm, SAE J20R4 CLASS C

1шт.

6

82029829

FLEXIBLE HOSE,19.50 mm ID x 360.00 mm, SAE J20R4 Class C

MXU100, MXU110, Serial Range: -C4917

1шт.

6

87306453

FLEXIBLE HOSE,335 mm x 19.5 mm

MXU100, MXU110, Serial Range: D4917-C5253

1шт.

6

87370929

FLEXIBLE HOSE

L=MM.410, MXU100, MXU110, Serial Range: D5253-C5323

1шт.

6

82029689

FLEXIBLE HOSE,19.50 mm ID x 430.00 mm, SAE J20R4 Class C

MXU115, MXU125, MXU135

1шт.

7

82039345

HOSE CLAMP,25mm - 40mm, Worm Gear

22 - 32

2шт.

8

82022744

CAP,Female, Vented, Non-Locking

1шт.

9

82007294

FLEXIBLE HOSE,7.62 mm ID, 1600 mm Length

L=MM.1600

1шт.

10

80529070

COLLAR

2шт.

11

82029758

BRACKET

1шт.

12

82029688

RETAINER

1шт.

13

82029687

TUBE

1шт.

14

14453585

O-RING,18.77mm ID x 1.78mm Width

1шт.

15

82035880

SUPPORT

1шт.

16

87388682

FLEXIBLE HOSE

, Start Serial: D5323

1шт.
