Запчасти Case IH MXU115 (1.17.0/87) - (VAR.435-437/1-545-608-612) CONDENSER AND DEHYDRATING FILTER FOR AIR CONDITIONING (02) - ENGINE EQUIPMENT

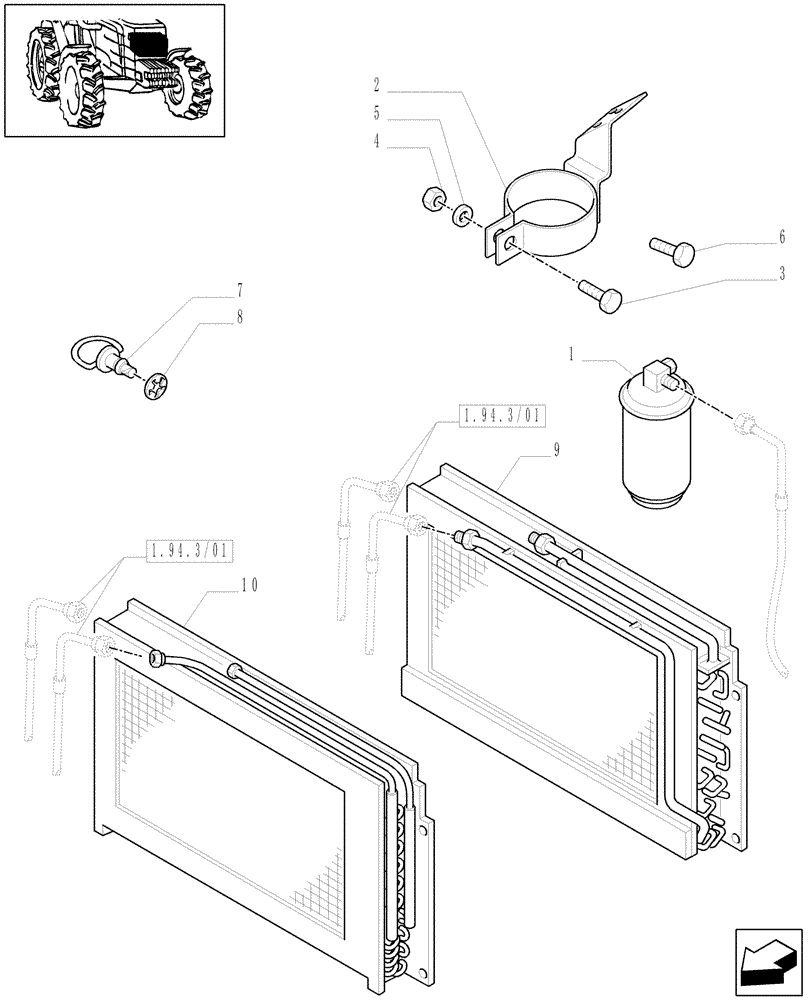

Схема запчастей Case IH MXU115 - (1.17.0/87) - (VAR.435-437/1-545-608-612) CONDENSER AND DEHYDRATING FILTER FOR AIR CONDITIONING (02) - ENGINE EQUIPMENT
7
6
8
1.94.3/01
5
9
3
1
10
2
1.94.3/01
4

Артикул

Название

Примечание

Количество

1

82023593

RECEIVER-DRYER

1шт.

1

87374420

RECEIVER-DRYER

1шт.

With VAR.434-577-745

1шт.

2

82027327

BRACKET

1шт.

3

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

5

10516474

LOCK WASHER

1шт.

6

86511828

SCREW,Phillips Drive, Pan HD, M6 x 12mm, Cl 4.8

1шт.

7

82011199

STUD

M6X1X12

1шт.

8

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

9

82035720

CONDENSER

, Serial Range: -C5344

1шт.

10

87532909

CONDENSER

, Start Serial: D5344

1шт.

Выбрано товаров: 12
