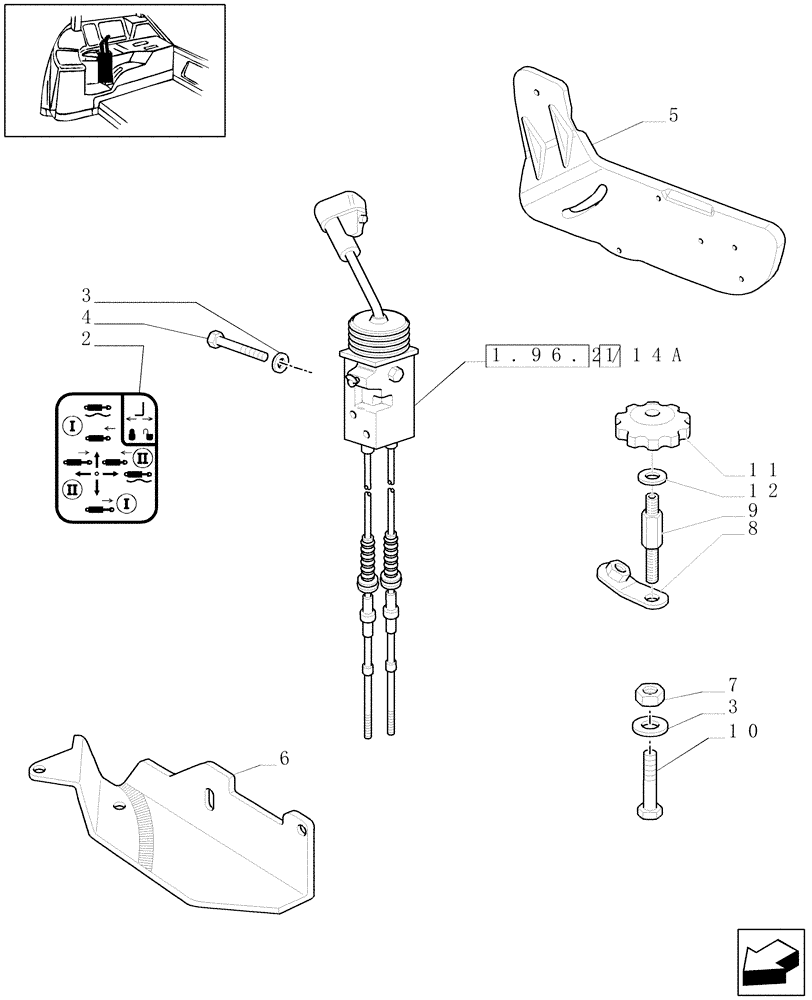

Запчасти Case IH MXU115 (1.96.2/11[01A]) - (VAR.335-723) MECHANICAL JOYSTICK GOVERNING 2 CONTROL VALVES - D5875 (10) - OPERATORS PLATFORM/CAB

1

87678207

GRAPPLE

1шт.

2

87487583

DECAL

1шт.

3

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

4

16044924

BOLT,Hex, M8 x 1.25 x 85mm, Cl 8.8

2шт.

5

82032615

BRACKET

1шт.

6

82026112

BRACKET

1шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

8

82035556

BRACKET

8 x 17

1шт.

9

82032760

SPACER,7/16" - 20

1шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

11

82032632

KNOB

1шт.

12

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

1шт.
