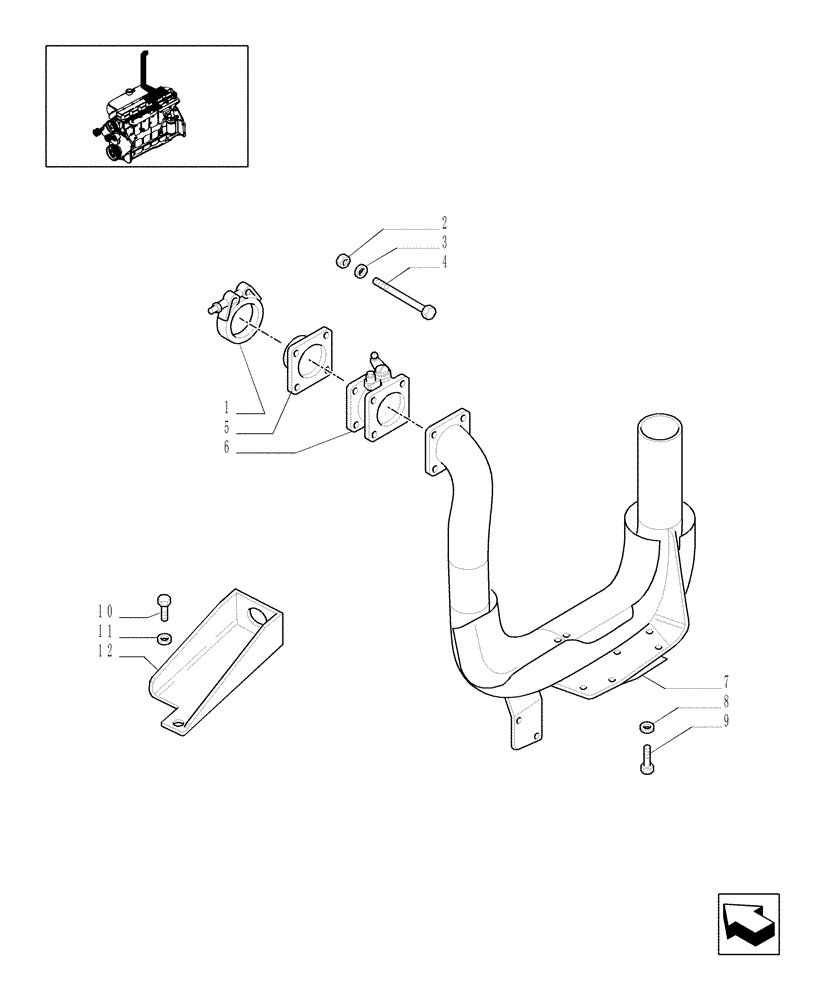

Запчасти Case IH MXU115 (1.15.1/01[02]) - (VAR.154) EXAUST BRAKE - SILENCER AND ASSOCIATED PARTS (02) - ENGINE EQUIPMENT

1

82033948

CLAMP

1шт.

2

11701721

NUT,M10, Cl 10

4шт.

3

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

4

11108221

BOLT,Hex, M10 x 100mm, Cl 8.8

4шт.

5

82027777

FLANGE

M10X100

1шт.

6

47057481

BRAKE VALVE

1шт.

7

82038744

EXHAUST SYSTEM PIPE

, Serial Range: -C5094

1шт.

7

87305785

EXHAUST SYSTEM PIPE

, Start Serial: D5094

1шт.

9

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

7шт.

11

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

10

11112221

SCREW,Hex, M12 x 25mm, Cl 8.8, Full Thd

7шт.

12

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

13

47057402

BRACKET

1шт.
