Запчасти Case IH MXU110 (1.96.2/01) - (VAR.265) 3 REAR CONTROL VALVES - CONTROL VALVE CONTROL (10) - OPERATORS PLATFORM/CAB

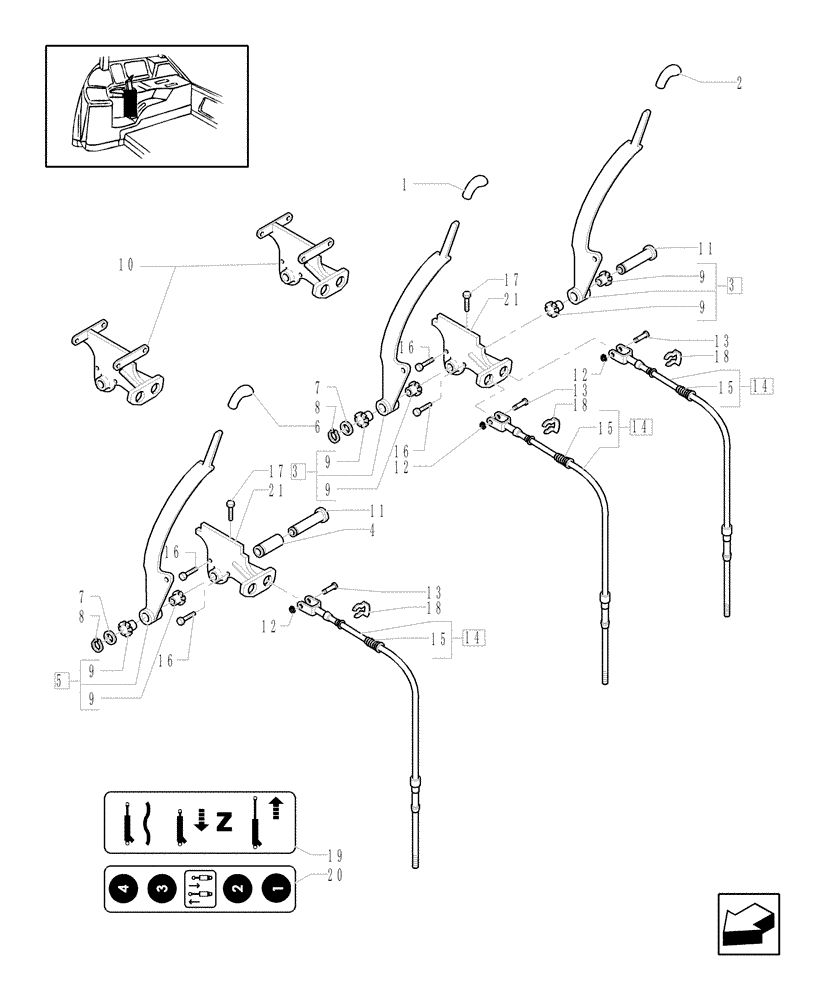

Схема запчастей Case IH MXU110 - (1.96.2/01) - (VAR.265) 3 REAR CONTROL VALVES - CONTROL VALVE CONTROL (10) - OPERATORS PLATFORM/CAB
8
21
19
3
12
5
11
14
20
18
11
15
17
9
6
4
13
15
9
14
18
16
12
18
15
8
10
2
13
7
21
16
12
14
9
3
13
16
9
9
17
1
16
9
7

Артикул

Название

Примечание

Количество

1

82037912

KNOB

3th Control Valve

1шт.

2

82037911

KNOB

2nd Control Valve

1шт.

3

82036832

LEVER

Includes Ref. 9

2шт.

4

82035996

SPACER,12mm ID x 20mm OD x 26mm L

1шт.

5

82036839

LEVER

Includes Ref. 9

1шт.

6

82037910

KNOB

1st Control Valve

1шт.

7

81819651

SPRING WASHER,13mm ID x 19mm OD

2шт.

8

11088171

SNAP RING,M11

2шт.

9

82035633

BUSHING

6шт.

10

82035241

SUPPORT

, Serial Range: -C5295

1шт.

11

82035628

HEADED PIN,11.98mm OD x 95mm L

2шт.

12

11087776

CIRCLIP,Ext., M6, BLO

3шт.

13

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

3шт.

14

82037073

CABLE,1826mm L

Remote Control, Serial Range: -C5295

3шт.

14

87308463

CABLE,1828mm L

Remote Control, Serial Range: D5295-C5441

3шт.

14

87525209

CABLE,1828mm L

Remote Control, Serial Range: D5441-C5875

3шт.

14

87678198

CABLE,1828mm L

Remote Control, Start Serial: D5875

3шт.

15

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

3шт.

16

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

17

13806421

SET SCREW,Hex Soc, M6 x 8mm

2шт.

18

83982632

CLIP

3шт.

19

87556505

DECAL

1шт.

20

82034262

DECAL

1шт.

21

87308465

HOUSING

, Start Serial: D5295

2шт.

Выбрано товаров: 24
