Запчасти Case IH MXU110 (1.94.2[03]) - HEATING - HEATER-AIR CONDITIONER AND RELATED PARTS (10) - OPERATORS PLATFORM/CAB

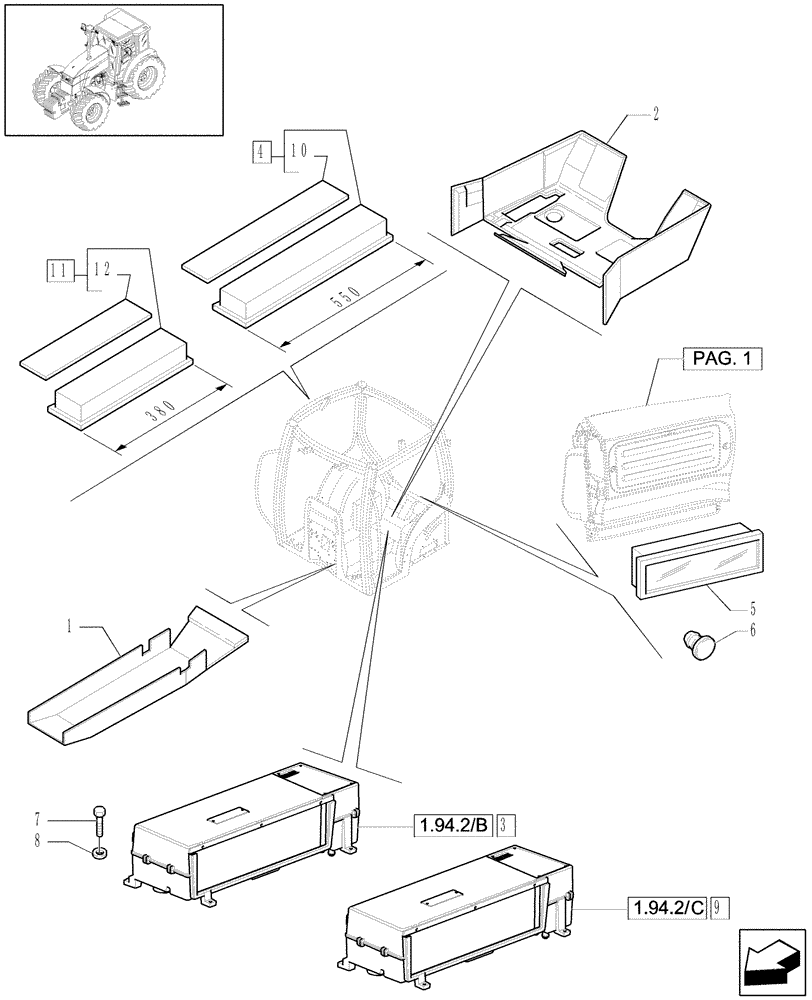

Схема запчастей Case IH MXU110 - (1.94.2[03]) - HEATING - HEATER-AIR CONDITIONER AND RELATED PARTS (10) - OPERATORS PLATFORM/CAB
5
7
6
4
8
550
380
2
9
3
10
1
12
11

Артикул

Название

Примечание

Количество

1

82027033

INSULATOR

RH

1шт.

1

82027034

INSULATOR

LH

1шт.

2

82027032

INSULATOR

1шт.

3

82034695

HEATER

1шт.

4

82034665

CAB FILTER

, Serial Range: -C5938

2шт.

W/High Profile Roof

1шт.

4

82034664

CAB FILTER

, Start Serial: D5938

2шт.

W/High Profile Roof

1шт.

5

87302687

CAB FILTER

Recirulation, Serial Range: -C5938

1шт.

5

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation, Start Serial: D5938

1шт.

6

82027031

PLUG,M10

1шт.

7

10902421

SCREW,Hex, M6 x 20mm, Cl 8.8

4шт.

8

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

9

82036400

AIR CONDITIONER

W/Air Cond.

1шт.

10

82024373

FOAM

2шт.

W/High Profile Roof

1шт.

11

87311194

CAB FILTER

, Serial Range: -C5938

2шт.

W/Low Profile Roof

1шт.

11

87726695

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

, Start Serial: D5938

2шт.

W/Low Profile Roof

1шт.

12

87311207

CAB FILTER

2шт.

W/Low Profile Roof

1шт.

Выбрано товаров: 22
