Запчасти Case IH MXU110 (1.75.4/01[02]) - (VAR.110-120) TRANSMISSION 12X12 - FUSEBOX & RELATED PARTS (06) - ELECTRICAL SYSTEMS

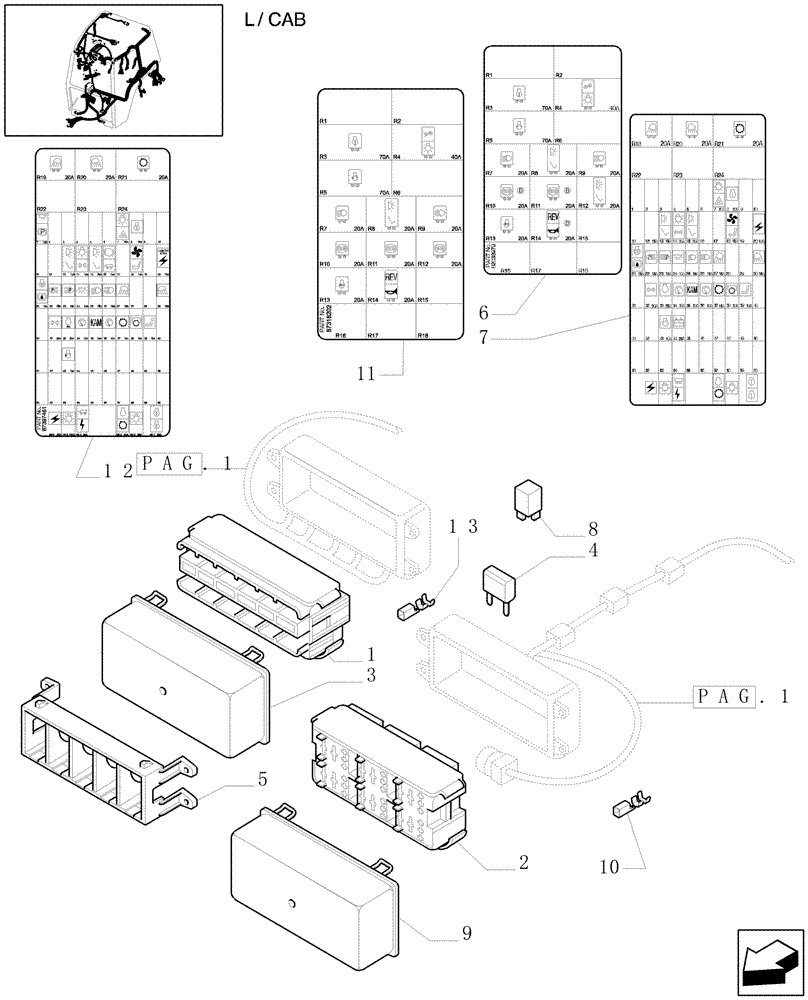

Схема запчастей Case IH MXU110 - (1.75.4/01[02]) - (VAR.110-120) TRANSMISSION 12X12 - FUSEBOX & RELATED PARTS (06) - ELECTRICAL SYSTEMS
4
7
9
pag.1
12
0
1
1
3
8
13
6
pag.1
2
1
5
1

Артикул

Название

Примечание

Количество

1

87390638

FUSE HOLDER

Fuse Box, MINIVAL

1шт.

1

87390639

FUSE HOLDER

Fuse Box, MAXIVAL

1шт.

2

87390640

HOLDER

Relay Box, ISO MICRORELAY

1шт.

2

87390641

HOLDER

Relay Box, ISO MICRORELAY (type1)

1шт.

2

87390642

HOLDER

Relay Box, ISO MICRORELAY (type2)

1шт.

3

82035657

COVER

Fuse Box

1шт.

Included On Main Rear Harness

1шт.

4

82033971

FUSE,100A, Maxi, Violet

100A

1шт.

Included On Main Rear Harness

1шт.

4

84183837

FUSE,80A, Maxil, Natural

80A

1шт.

Included On Main Rear Harness

1шт.

4

5190333

FUSE,40A, Maxi, Orange

40A

1шт.

Included On Main Rear Harness

1шт.

4

11056090

FUSE,30 Amp, Type B

30A

1шт.

Included On Main Rear Harness

1шт.

5

82039691

FUSE BOX

2шт.

Included On Main Rear Harness

1шт.

6

82034290

DECAL

Relay Box, Serial Range: -C5138

1шт.

Included On Main Rear Harness

1шт.

7

82033976

DECAL

Fuse Box, Serial Range: -C5331

1шт.

Included On Main Rear Harness

1шт.

8

10401290

FUSE,25 amp Mini

25A

1шт.

Included On Main Rear Harness

1шт.

8

10402190

FUSE,30A, Mini

30A

1шт.

Included On Main Rear Harness

1шт.

8

10401190

FUSE,20A, Mini, Yellow

20A

1шт.

Included On Main Rear Harness

1шт.

8

87524877

FUSE,15A, Mini, Blue

15A

1шт.

Included On Main Rear Harness

1шт.

8

87522597

FUSE,10A, Mini, Red

10A

1шт.

Included On Main Rear Harness

1шт.

8

82023238

RELAY,12V, 20A

, Start Serial: D5138

1шт.

Engine Shut Down, R13

1шт.

9

82033977

COVER

Relay Box

1шт.

Included On Main Rear Harness

1шт.

10

87301954

TERMINAL CONNECTOR,Tin, 0.35 - 0.75mm

0.35mm2-0.75mm2

1шт.

10

87301955

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm²

1.0mm2-2.0mm2

1шт.

10

87301956

TERMINAL CONNECTOR,2.5 - 4 mm2

2.5mm2-4.0mm2

1шт.

10

87301957

TERMINAL CONNECTOR,1 - 2 mm2

Bus-Bar 1.0mm2-2.0mm2

1шт.

10

87301958

TERMINAL CONNECTOR,2.5 - 4 mm2

Bus-Bar 2.5mm2-4.0mm2

1шт.

11

87318202

DECAL

Relay Box, Serial Range: D5138-C5761

1шт.

12

87397461

DECAL

Fuse Box, Serial Range: D5331-C5761

1шт.

13

19205994

ELEC. TERMINAL PIN

4-6mm Wire

1шт.

13

19206094

TERMINAL CONNECTOR,Female, 8 - 10 mm2

8-10mm Wire

1шт.

Выбрано товаров: 44
