(1.68.6[01]) - (VAR.178-242-243-385-448) TRAILER AIR BRAKE - COMPRESSOR AND SUPPORT

Запчасти Case IH MXU110 (1.68.6[01]) - (VAR.178-242-243-385-448) TRAILER AIR BRAKE - COMPRESSOR AND SUPPORT (05) - REAR AXLE

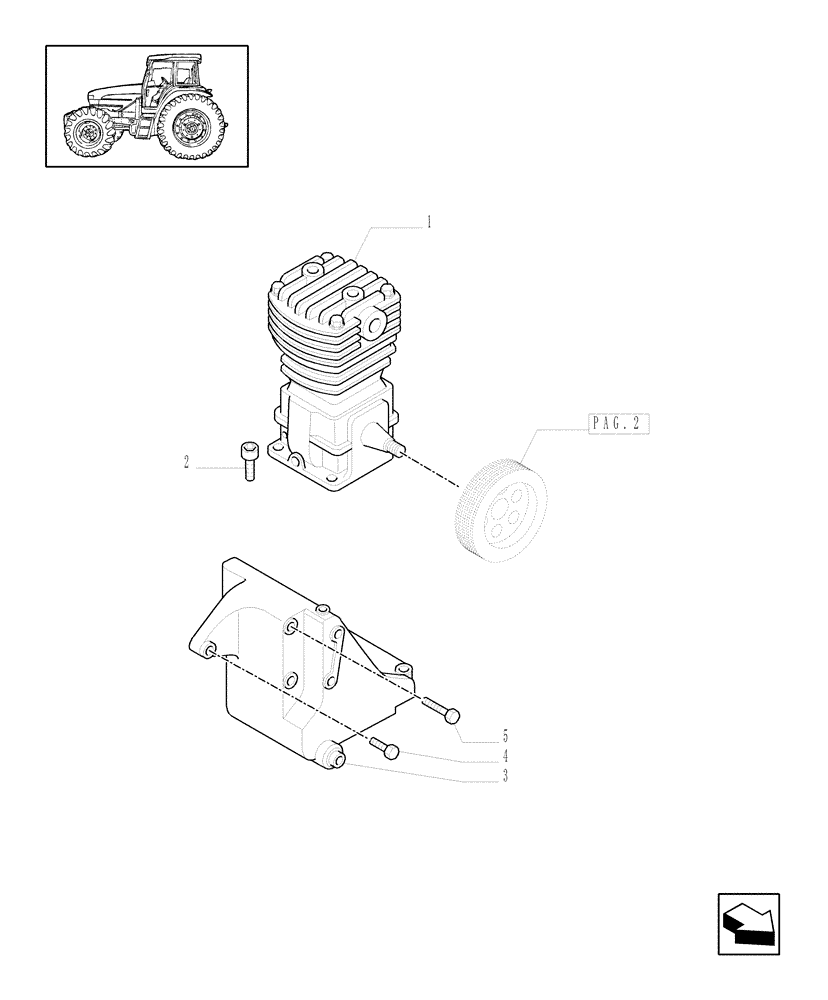

Схема запчастей Case IH MXU110 - (1.68.6[01]) - (VAR.178-242-243-385-448) TRAILER AIR BRAKE - COMPRESSOR AND SUPPORT (05) - REAR AXLE
1
pag.2
2
3
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87302100

AIR COMPRESSOR

1шт.

2

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

3

87802974

SUPPORT

1шт.

4

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

1шт.

5

16046131

SCREW,Hex, M8 x 100mm, Cl 10.9

2шт.
