(1.48.0[01]) - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS

Запчасти Case IH MXU110 (1.48.0[01]) - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS (05) - REAR AXLE

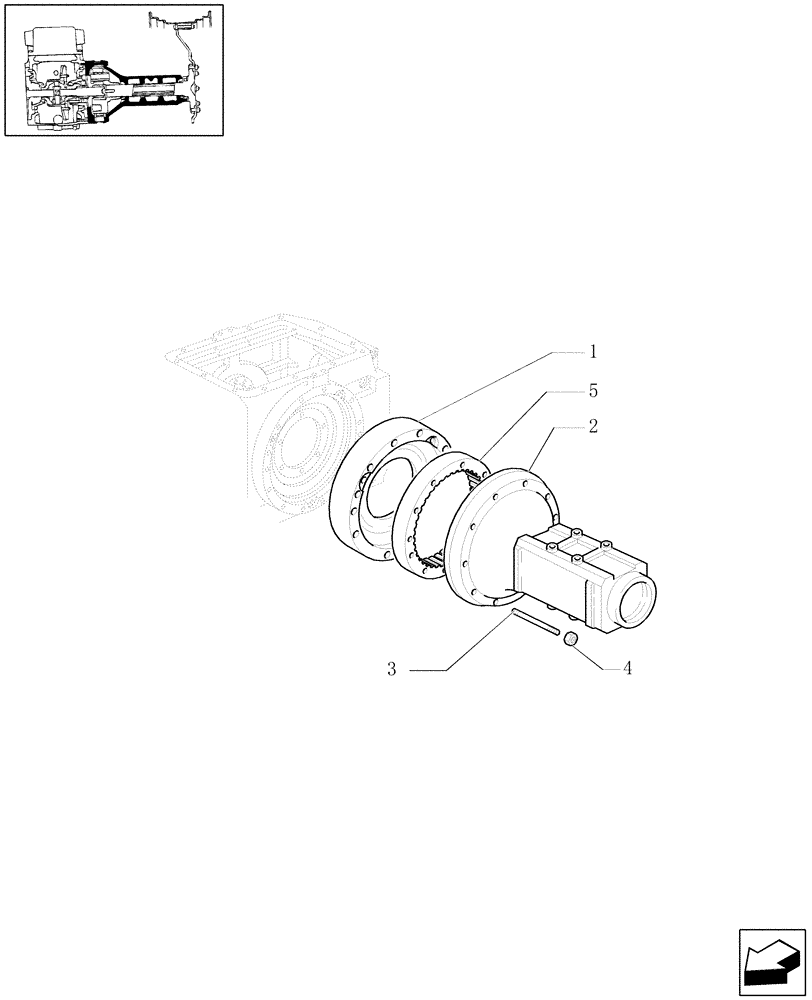

Схема запчастей Case IH MXU110 - (1.48.0[01]) - SIDE REDUCTION UNIT (FINAL DRIVE) HOUSING AND COVERS (05) - REAR AXLE
3
5
4
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47125656

SPACER

2шт.

2

47124107

AXLE HOUSING

2шт.

3

13975930

STUD

M14X1,5X28X100

16шт.

3

13976330

STUD

M14X1,5X28X120

8шт.

4

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

24шт.

5

5198665

RING GEAR

2шт.

Выбрано товаров: 0
