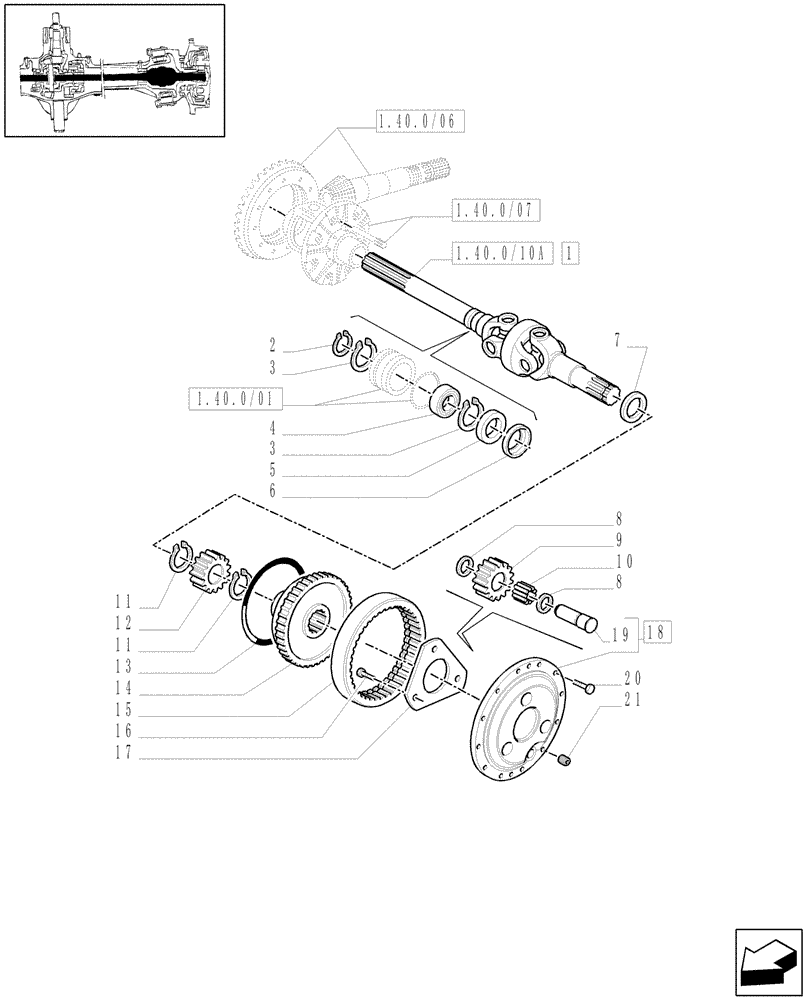

Запчасти Case IH MXU110 (1.40.0/10[01]) - 4WD CL.2 FRONT AXLE - DIFFERENTIAL GEARS AND DIFFERENTIAL SHAFT (04) - FRONT AXLE & STEERING

1

5164342

AXLE-SHAFT, ARTICULA

LH

1шт.

1

5164345

HALF SHAFT

RH

1шт.

2

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

3

80370012

SNAP RING

D=62

4шт.

4

28042470

BALL BEARING,35mm ID x 62mm OD x 14mm W

35 x 62 x 14

2шт.

5

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

40X62X10-12

2шт.

6

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

2шт.

7

5184118

SEAL,42mm ID x 62mm OD x 21.5mm Thk

62 x 42 x 21.5

2шт.

8

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

9

5145497

PLANETARY GEAR,25T

6шт.

10

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

6шт.

11

5140018

SNAP RING,M30, Ext

D=30

4шт.

12

5145501

SUN GEAR,16T

2шт.

13

5151438

LOCKING RING,222mm ID, Int

2шт.

14

5151440

GEAR

2шт.

15

5191770

RING GEAR

2шт.

16

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

17

5152324

LOCKING RING,4mm Thk

2шт.

18

87310820

CARRIER,Planetary

2шт.

19

87304540

PIN,30.3mm OD x 68mm L

68mm l.

6шт.

20

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

21

14326211

PLUG,M22 x 1.50, R50, ZND

Magnetic

2шт.
