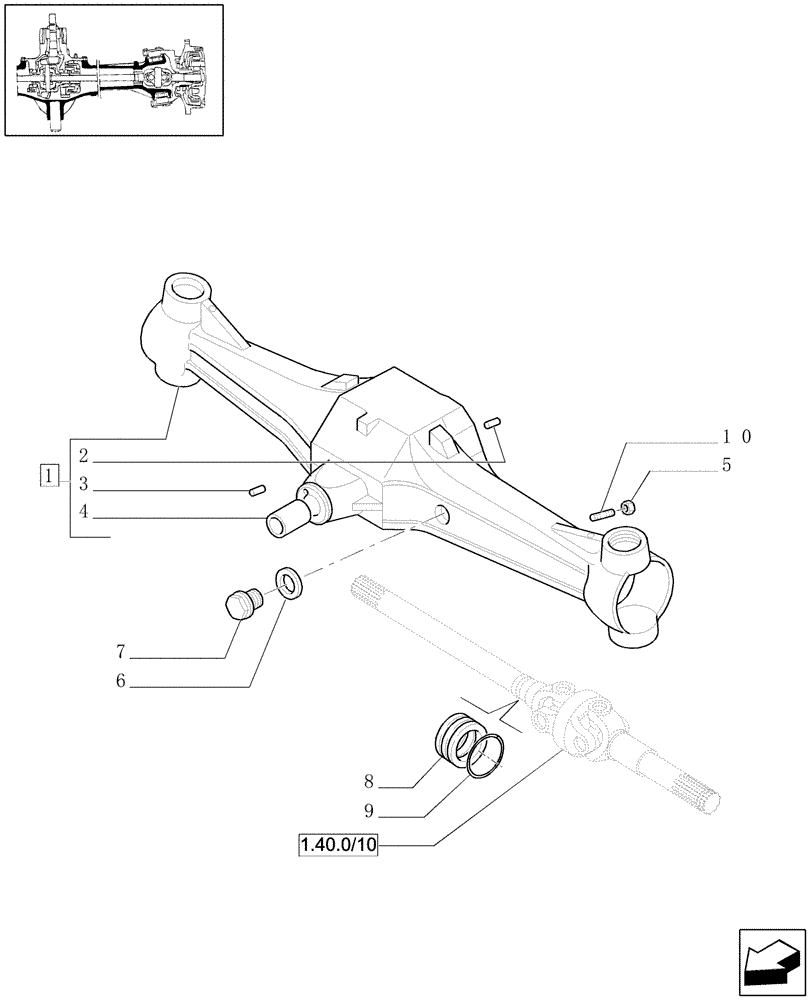

Запчасти Case IH MXU110 (1.40.0/01[01]) - 4WD CL.2 FRONT AXLE - BOX (04) - FRONT AXLE & STEERING

1

87309857

AXLE HOUSING

Includes Ref.2, 3, 4

1шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

16101524

NUT,M12 x 1.25, Cl 10

2шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

7

10305171

PLUG,M22 x 1.5 x 21

2шт.

8

87371268

BUSHING,62mm ID x 85mm OD x 43mm L

, Start Serial: D5243

2шт.

8

4996755

BUSHING

, Serial Range: -C5243

2шт.

9

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

80 x 2.62

2шт.

10

87309002

SET SCREW

M12X1,25X64

2шт.
