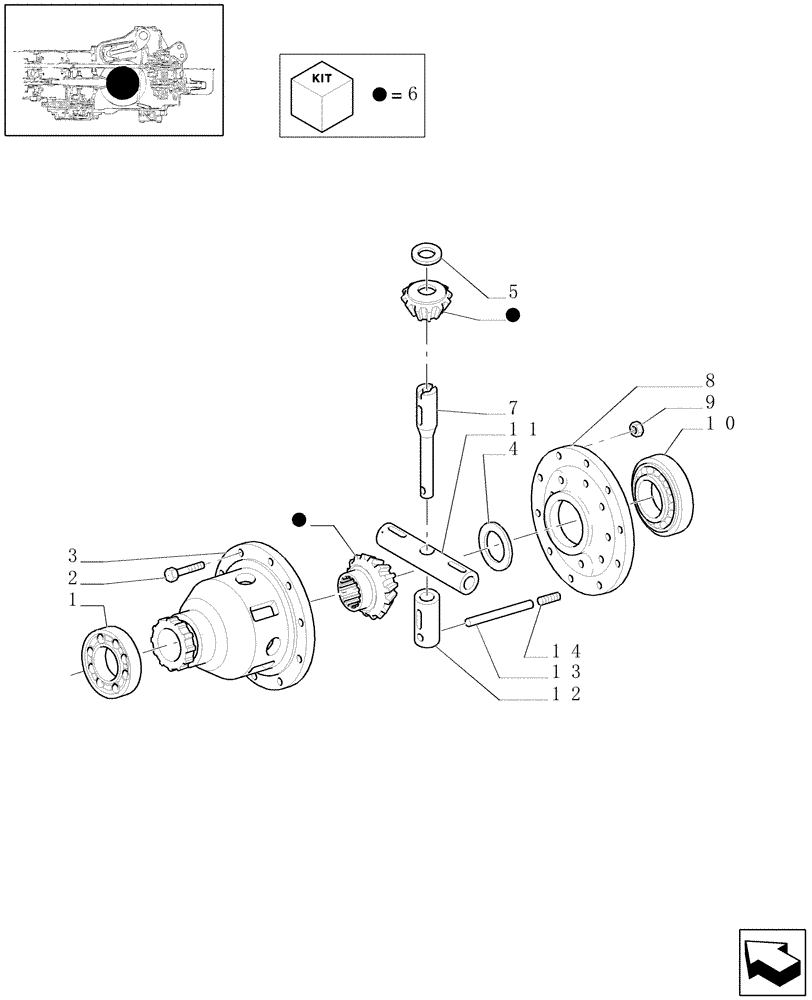

Запчасти Case IH MXU110 (1.32.4/01) - (VAR.437) 98" LONG AXLE FOR STEEL DISK - DIFFERENTIAL GEARS (03) - TRANSMISSION

1

24903480

ROLLER BEARING,75mm ID x 115mm OD x 25mm W

75 x 115 x 25

1шт.

2

16214934

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

10шт.

3

5198908

DIFFERENTIAL ASSY

1шт.

4

5197537

THRUST WASHER,2.700mm

1шт.

4

5197702

SHIM,2.750mm

1шт.

4

5197703

SHIM,2.800mm

1шт.

4

5197704

SHIM,2.850mm

1шт.

4

5197705

SHIM,2.900mm

1шт.

4

5197706

SHIM,2.950mm

1шт.

4

5197707

SHIM,3.000mm

1шт.

4

5197708

SHIM,3.050mm

1шт.

4

5197709

SHIM,3.100mm

1шт.

4

5197710

SHIM,3.150mm

1шт.

4

5197711

SHIM,3.200mm

1шт.

4

5197712

SHIM,3.250mm

1шт.

4

5197713

SHIM,3.300mm

1шт.

4

5197714

SHIM,3.350mm

1шт.

4

5197715

SHIM,3.400mm

1шт.

4

5197716

SHIM,3.450mm

1шт.

4

5197717

SHIM,3.500mm

1шт.

5

5191908

THRUST WASHER,Curved, 28mm ID x 63.5mm OD x 1.47mm Thk

4шт.

6

87372491

DIFFERENTIAL

1шт.

7

5191915

PIN

1шт.

8

47123461

COVER

1шт.

9

13598221

NUT,M14 x 1.5

10шт.

10

24903490

BEARING ASSY,80mm ID x 125mm OD x 29mm W

80 x 125 x 29

1шт.

11

5191914

PIN,28mm OD x 172mm L

1шт.

12

5191916

BUSHING

1шт.

13

14516420

DOWEL,M7 x 55

7X55

1шт.

14

13809470

SET SCREW,Hex Soc, M10 x 16mm, Flat Pt

1шт.
