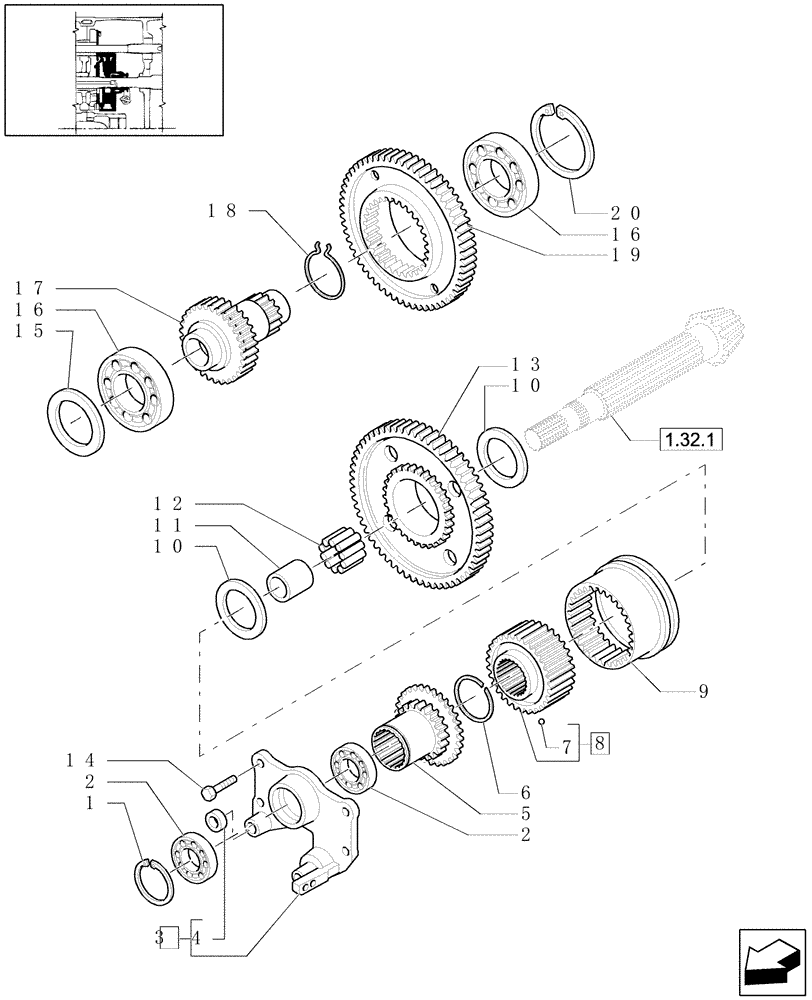

Запчасти Case IH MXU110 (1.32.3/01[01]) - (VAR.100/1) CREEPER TRANSMISSION FOR TRANSMISSION 12X12 - CONTROL REDUCTION (03) - TRANSMISSION

1

11069576

SNAP RING,M55, Ext

1шт.

2

28042510

BALL BEARING,55mm x 90mm x 18mm

55 x 90 x 18

2шт.

3

47126844

COVER

Includes Ref.4

1шт.

4

47126786

BUSHING,12.5mm ID x 15mm OD x 7.8mm L

2шт.

5

5198173

GEAR

1шт.

6

13398876

SNAP RING,M38, Int

D=38

1шт.

7

20063460

BALL,7.14mm OD, Gr 100

D=7,144

2шт.

8

5198461

SLEEVE

Includes Ref.7

1шт.

9

47125132

SLEEVE,29T

1шт.

10

5194534

THRUST WASHER

2шт.

11

5194536

RING RACE

1шт.

12

5194535

NEEDLE BEARING CAGE,55mm ID x 60mm OD x 27mm L

1шт.

13

5194541

GEAR

1шт.

14

15540531

SCREW,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

15

5198403

SPACER

1шт.

16

80037198

BALL BEARING

45X85X19

2шт.

17

5198395

SHAFT

1шт.

18

5192305

SNAP RING,M80.6, Ext

D=85

1шт.

19

5198393

GEAR

1шт.

20

11062176

CIRCLIP,M85, Int

1шт.
