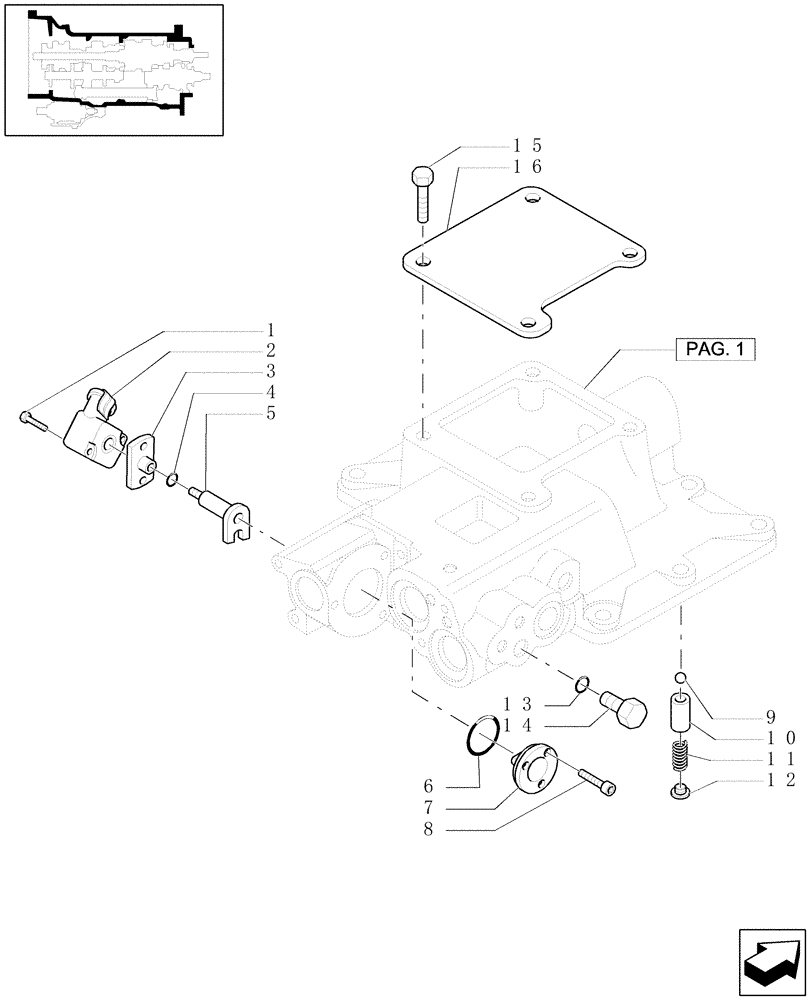

Запчасти Case IH MXU110 (1.29.9[02]) - TRANSMISSION 24X24 - GEARBOX CLUTCH HOUSING COVER (03) - TRANSMISSION

1

13275001

SCREW,Cross Pan Hd, M5 x 40mm

2шт.

2

82033385

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor

1шт.

3

5178541

PLATE

1шт.

4

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

5

5178335

SHAFT,12mm OD x 48.5mm L

1шт.

6

14454780

O-RING,1.614" ID x 0.07" Width

1шт.

7

82019915

COVER

1шт.

8

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

3шт.

9

88210005

BALL,10mm OD

D=10

1шт.

10

81864220

PLUNGER

1шт.

11

83407013

SPRING

1шт.

12

82031672

PLUG

1шт.

13

80165202

O-RING

90 Duro, .351" ID x .072" Thk

1шт.

14

89672438

PLUG

1шт.

15

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

15971824

SCREW,Hex, M10 x 1.25 x 100mm, Cl 8.8

2шт.

16

82019916

COVER

1шт.
