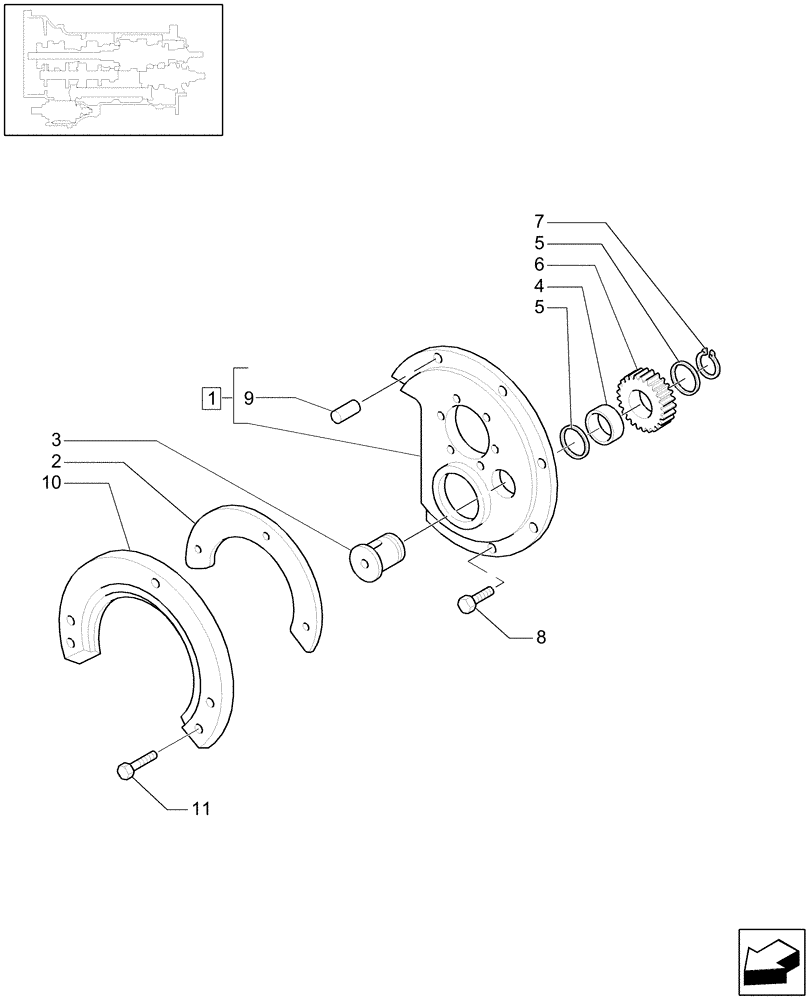

Запчасти Case IH MXU110 (1.28.1/03[01]) - (VAR.129) 16X16 (SPS) GEARBOX - FRONT COVER (03) - TRANSMISSION

1

47126620

BEARING COVER

Includes Ref.9

1шт.

2

87307436

SHIM,0.50mm Thk

MM.0.50

1шт.

2

87307437

SHIM,0.60mm Thk

MM.0.60

1шт.

2

87307438

SHIM,0.70mm Thk

MM.0.70

1шт.

2

87307439

SHIM,0.80mm Thk

MM.0.80

1шт.

2

87307440

SHIM,0.90mm Thk

MM.0.90

1шт.

2

87307441

SHIM,1mm Thk

MM.1.00

1шт.

2

87307442

SHIM,1.10mm Thk

MM.1.10

1шт.

2

87307443

SHIM,1.20mm Thk

MM.1.20

1шт.

2

87307444

SHIM,1.30mm Thk

MM.1.30

1шт.

2

87307445

SHIM,1.40mm Thk

MM.1.40

1шт.

2

87307446

SHIM,1.50mm Thk

MM.1.50

1шт.

2

87307447

SHIM,1.60mm Thk

MM.1.60

1шт.

2

87307448

SHIM,1.70mm Thk

MM.1.70

1шт.

2

87307449

SHIM,1.80mm Thk

MM.1.80

1шт.

2

87307450

SHIM,1.90mm Thk

MM.1.90

1шт.

2

87307451

SHIM,2mm Thk

MM.2.00

1шт.

2

87307452

SHIM,2.10mm Thk

MM.2.10

1шт.

2

87307453

SHIM,2.20mm Thk

MM.2.20

1шт.

2

87307454

SHIM,2.30mm Thk

MM.2.30

1шт.

3

82013692

SHAFT

1шт.

4

81863099

BEARING ASSY,35mm ID x 45mm OD x 19.8mm W

1шт.

5

82012540

THRUST WASHER,35mm ID x 52mm OD x 2.5mm Thk

2шт.

6

81863092

GEAR

1шт.

7

11068376

SNAP RING,M35, Ext x 1.5 Thk

1шт.

8

11227924

BOLT,Hex, M10 x 1.25 x 28, 8.8, Full Thd

8шт.

9

83980528

DOWEL,12.71mm OD x 20.57mm L

2шт.

10

47126699

COVER

1шт.

11

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

3шт.
