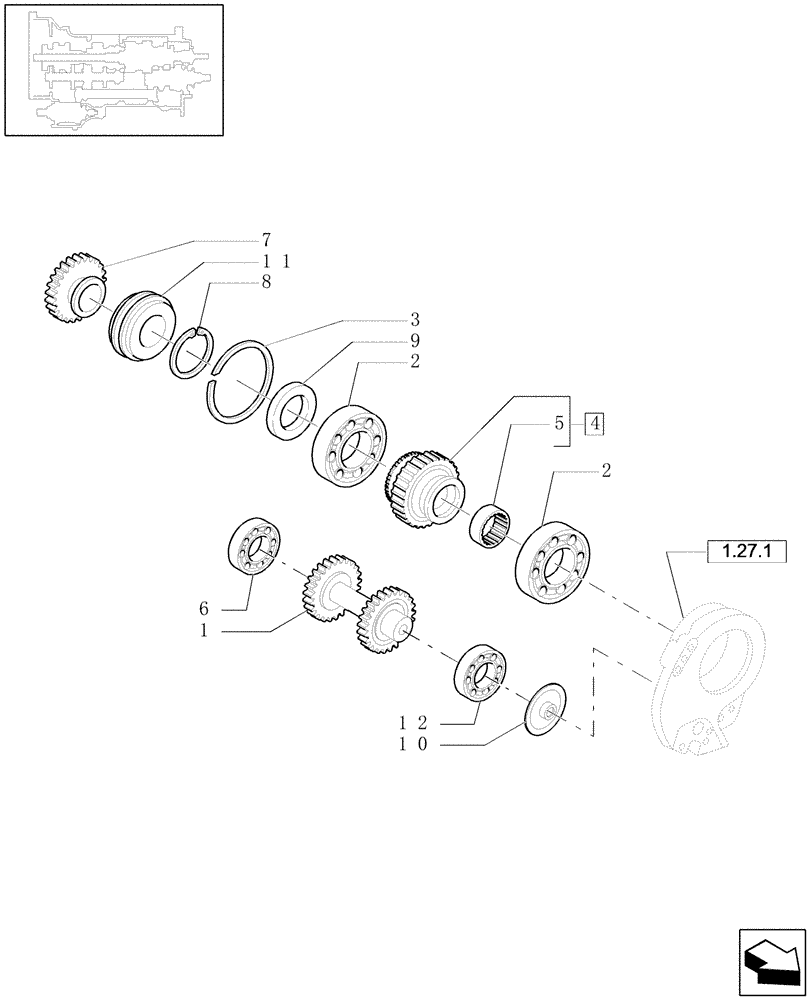

Запчасти Case IH MXU110 (1.27.5) - TRANSMISSION 24X24 - REVERSER MECHANISMS (03) - TRANSMISSION

1

5195962

GEAR

1шт.

2

81824525

BEARING ASSY,79.98mm ID x 125.01mm OD x 14mm W

2шт.

3

81878947

SNAP RING,M125 x 2.5mm Thk, Int

1шт.

4

82001343

GEAR

Includes Ref.5

1шт.

5

81863669

BEARING ASSY,Needle, 45mm ID x 52mm OD x 20mm W

1шт.

6

83983006

BEARING ASSY,25mm ID x 62mm OD x 17mm W

1шт.

7

81878934

GEAR

1шт.

8

81864658

SNAP RING,55.2mm ID

1шт.

9

81878979

THRUST WASHER

1шт.

10

5195959

WASHER

1шт.

11

47124378

SYNCHRONIZER

Forward/Reverse

1шт.

12

28102290

BALL BEARING,30mm x 62mm x 16mm

30X62X16

1шт.
