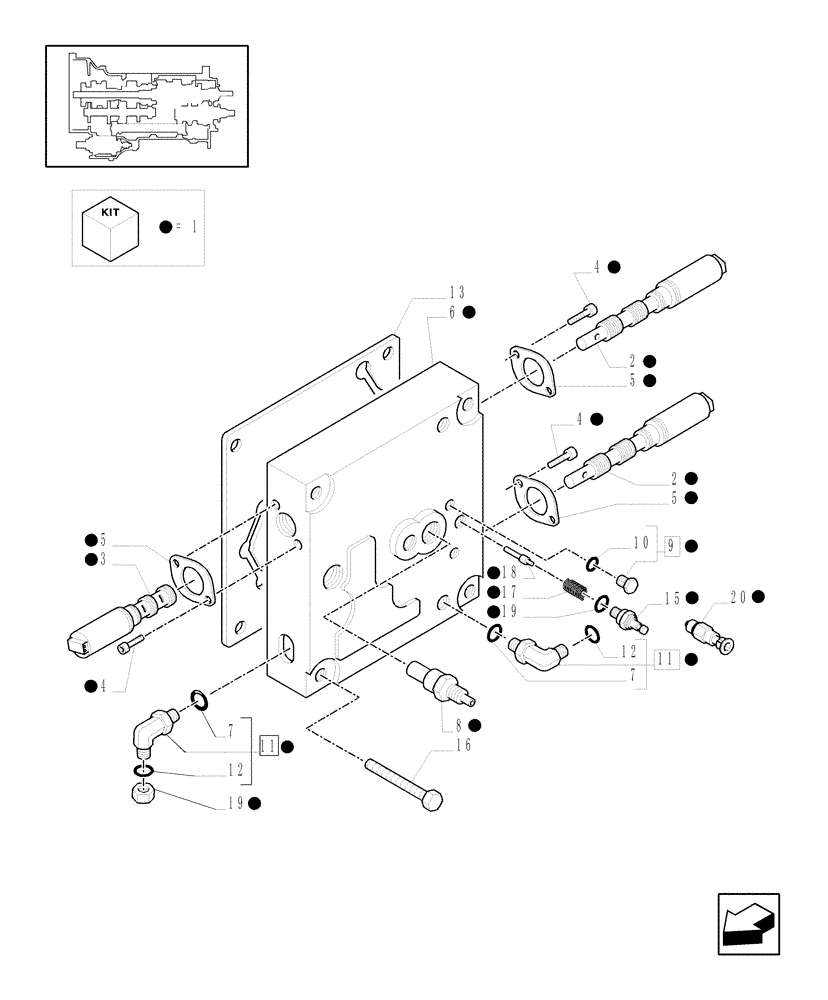

Запчасти Case IH MXU110 (1.27.4[01]) - TRANSMISSION 24X24 - HI-LO TRANSMISSION ENGAGEMENT CONTROL - C5276 (03) - TRANSMISSION

1

5198441

CONTROL VALVE

1шт.

2

5196873

SOLENOID VALVE

2шт.

3

84273815

SOLENOID VALVE,12V DC, 7.3Ohm

Black Connectors

1шт.

4

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

6шт.

5

5194826

BRACKET

3шт.

6

5197921

BODY

1шт.

7

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

8

82028133

SENSOR,3/8"-18

Trans. Temp.

1шт.

9

82857995

PLUG,7/16" - 20 ORB

Includes Ref.10

2шт.

10

82857994

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

90 Duro, .351" ID x .072" Thk

2шт.

11

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

M18X1,5, 13/16"-16, Includes Ref.7, 12

3шт.

12

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

3шт.

13

47136108

GASKET

1шт.

14

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

1шт.

15

82020683

SWITCH ASSY

Shift Rail Position, Grey, Serial Range: -C5246

1шт.

16

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

5шт.

17

81878966

SPRING,Cylindrical, 11mm OD x 17mm L

1шт.

18

47137634

PLUNGER

1шт.

19

47123020

PLUG,Hex

1шт.

20

87369251

SWITCH ASSY

Grey, Start Serial: D5246

1шт.
