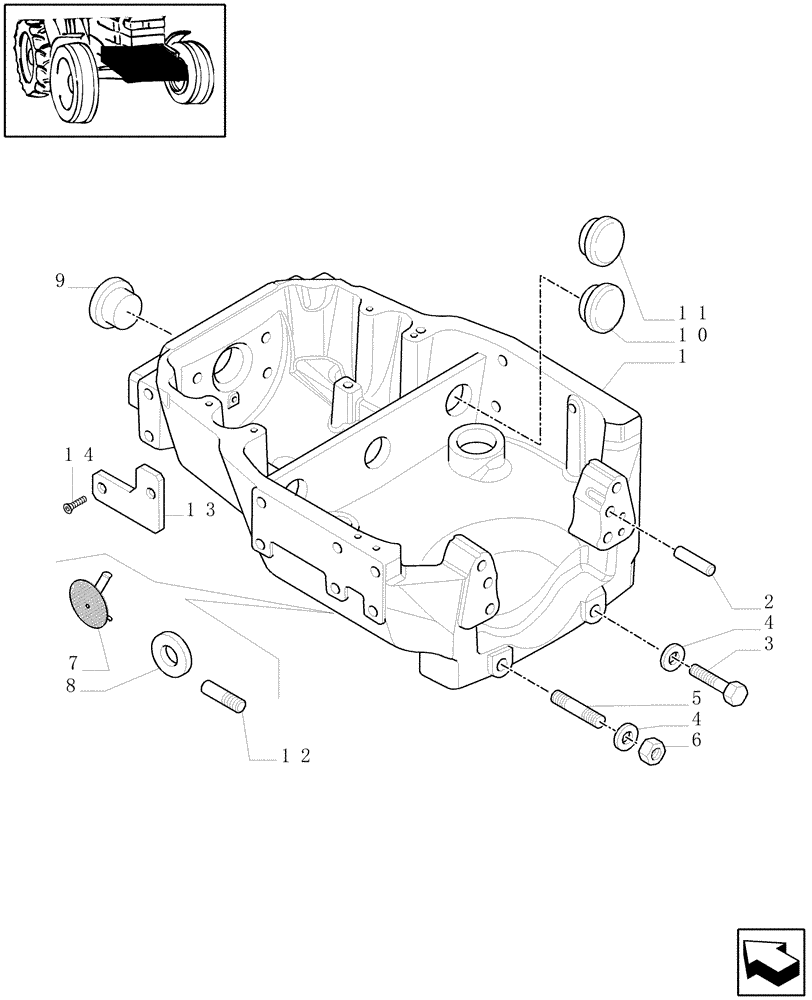

Запчасти Case IH MXU110 (1.21.1/01[01]) - 4WD SUPPORT FOR FRONT AXLE - C5379 (03) - TRANSMISSION

1

82030986

SUPPORT

1шт.

2

82035662

DOWEL,M20 x 52

2шт.

3

82028028

BOLT,Hex, M20 x 1.5 x 118mm, Cl 12.9

M20x1,5x118

4шт.

4

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

6шт.

5

82028302

STUD

M20x1,5x170

2шт.

6

87312644

NUT,Hex, M20, 1.5 Pitch, 16mm High, Gr R12

M20x1,5

2шт.

7

82021866

GRILLE

1шт.

8

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

8

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

8

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

8

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

8

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

8

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

8

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

8

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

8

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

8

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

8

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

8

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

9

82023398

PLUG

1шт.

10

82023395

PLUG,60mm ID

2шт.

11

82027992

PLUG,80.00mm, 90.00mm OD, 32.00mm D

1шт.

12

87311365

DOWEL,19.8mm OD x 85mm L

M20X70

2шт.

13

82024710

SPACER

LH

1шт.

13

82024711

SPACER

RH

1шт.

14

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

Hex Sckt Countersunk HD, M10 x 1.5 x 25

4шт.
