(1.21.0/01[01A]) - (VAR.129) 16X16 (SPS) GEARBOX - PIPES AND FRONT COVER - D5890

Запчасти Case IH MXU110 (1.21.0/01[01A]) - (VAR.129) 16X16 (SPS) GEARBOX - PIPES AND FRONT COVER - D5890 (03) - TRANSMISSION

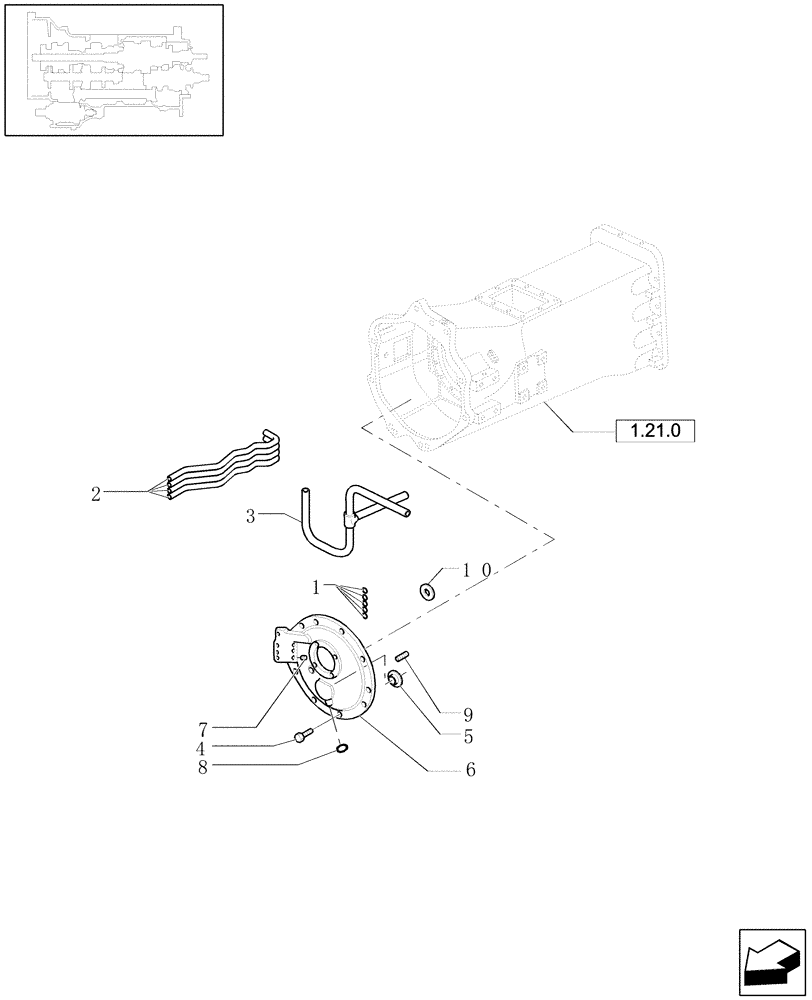

Схема запчастей Case IH MXU110 - (1.21.0/01[01A]) - (VAR.129) 16X16 (SPS) GEARBOX - PIPES AND FRONT COVER - D5890 (03) - TRANSMISSION
9
12
3
1
2
8
4
7
12
5
12
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

90 Duro, .489" ID x .070" Thk

1шт.

2

5199153

TUBE

For Clutch Int.

4шт.

3

47126778

TUBE

For Oil Transfer Transmission Out Put Bearing

1шт.

4

11227924

BOLT,Hex, M10 x 1.25 x 28, 8.8, Full Thd

8шт.

5

81863544

INSULATOR

1шт.

6

47126736

FLANGE COVER CAP

1шт.

7

81863108

SEAL

4шт.

8

81863105

SEAL

1шт.

9

83980528

DOWEL,12.71mm OD x 20.57mm L

2шт.

10

12641004

WASHER,10.2mm ID x 20mm OD x 3mm Thk

8шт.
