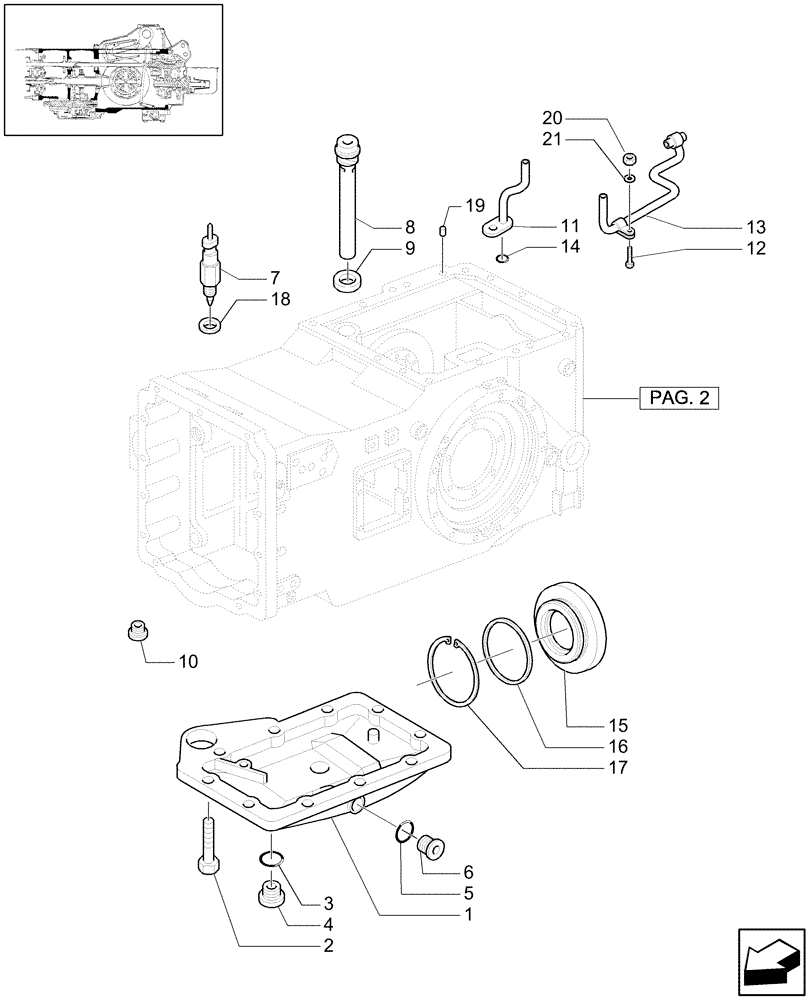

Запчасти Case IH MXU110 (1.21.0[03]) - TRANSMISSION BOX AND RELATED PARTS (03) - TRANSMISSION

1

47129404

COVER

1шт.

2

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

8шт.

2

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

2шт.

3

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

4

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

5

89626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

90 Duro, 1.048"ID x .116" Thk

1шт.

6

5185747

PLUG,1"13/16-12

1шт.

7

47125857

SWITCH

NORMALLY CLOSED

1шт.

"DIFFLOCK SWITCH"

1шт.

8

47133085

BREATHER

1шт.

9

10262160

SEAL,M28.4 x 34 x 2, Copper

1шт.

10

5193112

BUSHING

1шт.

11

5193109

TUBE

1шт.

12

15970424

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

12

15540124

SCREW,Hex, M12 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

13

47136932

TUBE

1шт.

For lubrification Pto and Differential

1шт.

14

14453181

O-RING,0.489" ID x 0.07" Width

1шт.

15

5195796

PLUG

2WD

1шт.

16

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2WD

1шт.

17

11061976

SNAP RING,M80, Int

2WD

2шт.

18

10261260

SEALING WASHER,M14.2 x 22 x 1.5, Copper

1шт.

18

10279760

SEALING WASHER,14.2mm ID x 20mm OD x 0.5mm Thk

1шт.

18

4858608

SEAL,14mm ID x 19.50mm OD x 1.50mm Thk

14x20x1

1шт.

19

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

M10 x 1.25

1шт.

20

16105021

LOCK NUT,M12 x 1.25, Cl 10

1шт.

21

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.
