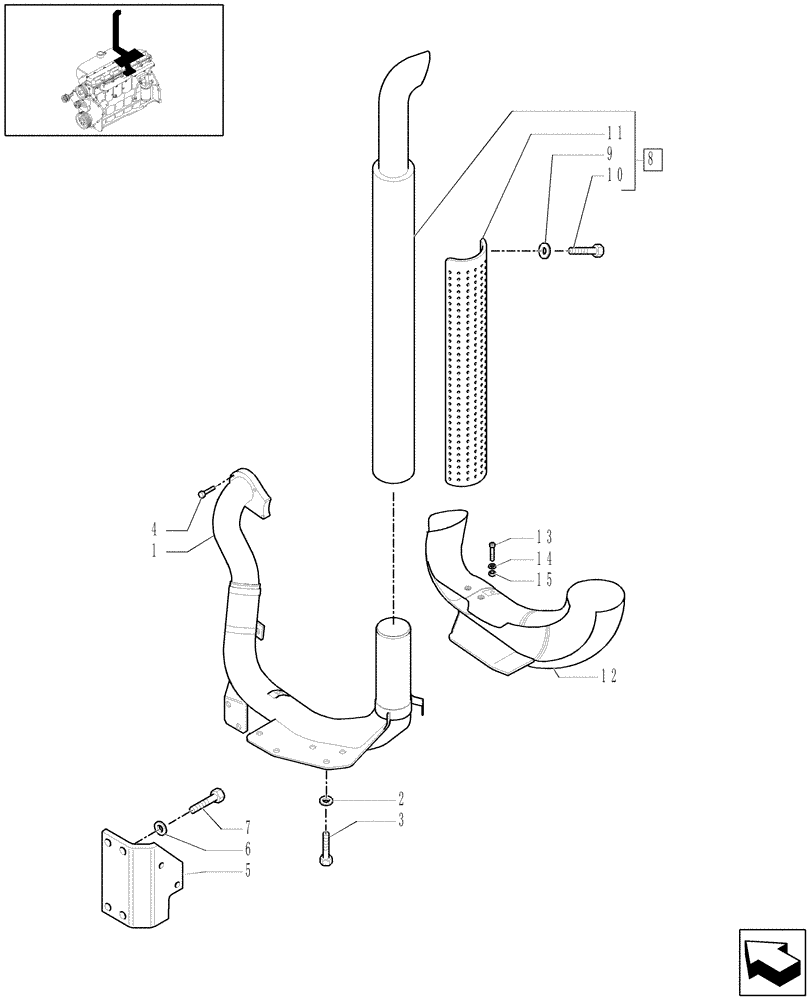

Запчасти Case IH MXU110 (1.15.1[01]) - SILENCER (MUFFLER) (02) - ENGINE EQUIPMENT

1

87305649

EXHAUST SYSTEM PIPE

Includes Ref. 12, 13, 14,15

1шт.

2

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

7шт.

3

80300388

SCREW,M12 x 25mm

M12X25

7шт.

4

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

5

82036784

SUPPORT

muffler bracket for Less Loader Ready

1шт.

6

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

4шт.

7

11115521

SCREW,Hex, M14 x 30mm, Cl 8.8

M14X2X30

4шт.

8

82027831

EXTENSION

L/Cab, Includes Ref., Serial Range: 9-11

1шт.

8

82027852

MUFFLER

L/Cab, Includes Ref., Serial Range: 9-11

1шт.

W/Var.197-198 Air Cleaner with precleaner

1шт.

8

87324752

MUFFLER

W/Cab, Includes Ref., Serial Range: 9-11

1шт.

8

87324756

MUFFLER

W/Cab, Includes Ref., Serial Range: 9-11

1шт.

W/Var.197-198 Air Cleaner with precleaner

1шт.

9

82035359

SHIELD

6X8X12

6шт.

10

14759521

SCREW,M6 x 14mm

M6X14

6шт.

11

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

1шт.

12

87305791

SHIELD

1шт.

13

14759521

SCREW,M6 x 14mm

M6x14

7шт.

14

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

7шт.

15

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

7шт.
