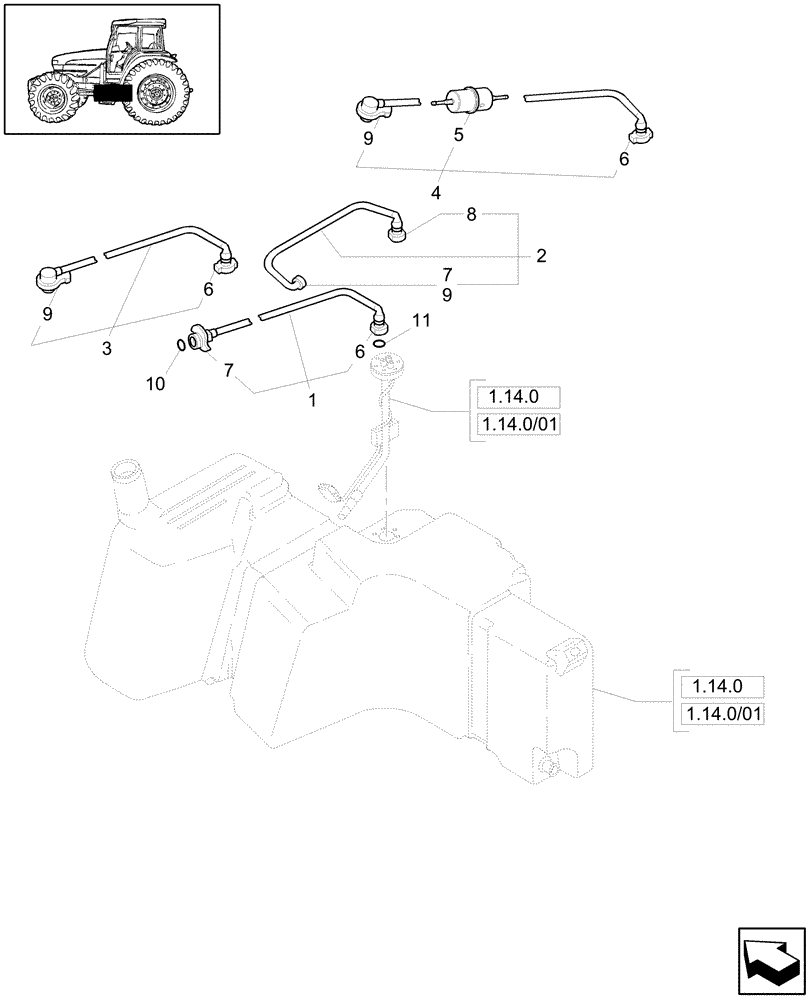

Запчасти Case IH MXU110 (1.14.6) - FUEL, LINES (02) - ENGINE EQUIPMENT

1

87307964

TUBE,8 mm DIA

Feed, 4 Cyl. Mech., MXU100, MXU110, Serial Range: -C5253

1шт.

1

87307962

TUBE,8 mm DIA

Feed, MXU115, MXU130, Serial Range: -C5330

1шт.

2

87307766

TUBE,8 mm DIA

Return, 4 Cyl. Mech., Incl. Ref. 7 & 8, MXU100, MXU110

1шт.

2

87307763

TUBE,8 mm DIA

Return, 6 Cyl. Mech., Incl. Ref. 8 & 9, MXU115, MXU130

1шт.

3

87370924

TUBE,8 mm DIA x 900, 100 mm L

Feed, MXU100, MXU110 D5253 to C5330 C5792

1шт.

3

87696294

FUEL HOSE,6mm ID x 920mm L

Feed, 820mm, MXU100, MXU110, Start Serial: D5792

1шт.

4

87380802

TUBE,8 mm DIA x 1150, 100 mm L

MXU115, MXU130, Start Serial: D5330

1шт.

4

87380808

TUBE,8 mm DIA x 900, 200 mm L

MXU100, MXU110, Start Serial: D5330

1шт.

5

87329736

FUEL FILTER

Inline, Start Serial: D5330

1шт.

6

82028479

FITTING

.

5шт.

7

82028481

FITTING

.

3шт.

8

82028480

COUPLING, QUICK, FEM

2шт.

9

82028482

FITTING

4шт.

10

NSS

NOT SOLD SEPARAT

1шт.

11

NSS

NOT SOLD SEPARAT

1шт.
