Запчасти Case IH MXU110 (1.98.0/01[02]) - (VAR.007) NORTH AMERICA VERSION - DECALS (13) - DECALS

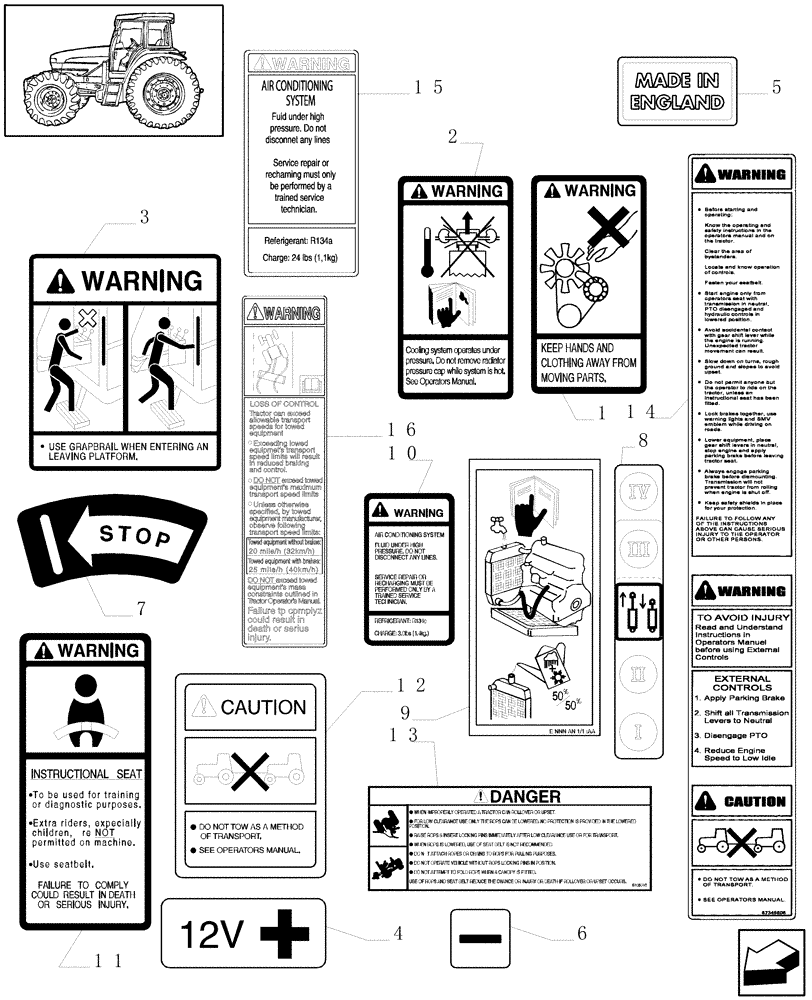

Схема запчастей Case IH MXU110 - (1.98.0/01[02]) - (VAR.007) NORTH AMERICA VERSION - DECALS (13) - DECALS
1
8
7
12
15
2
11
5
14
10
4
16
3
6
9
13

Артикул

Название

Примечание

Количество

1

82029538

DECAL

WARNING, Fan

1шт.

2

82029421

WARNING DECAL

Radiator Pressure

2шт.

3

82030509

DECAL

WARNING, Instructions

1шт.

4

87524728

DECAL

Jump Start Terminal (+)

1шт.

5

81858824

DECAL

Country of Origin

1шт.

6

87524725

DECAL

Jump Start Terminal (-)

1шт.

7

87556492

DECAL

Stop Engine

1шт.

8

87311455

DECAL

Hydraulic Remote Control Valve

1шт.

9

82015448

DECAL

Coolant Level

1шт.

10

82031924

DECAL

Air Conditioning, W/Cab, Serial Range: -C5772

1шт.

11

82030479

DECAL

WARNING, Instruction Seat, W/Cab

1шт.

12

82030506

DECAL

Towing Instructions, W/CAB, Serial Range: -C5327

1шт.

13

82030442

DECAL

Rollover, L/Cab

1шт.

14

87345806

DECAL

, Start Serial: D5327

1шт.

15

87672091

DECAL

Air Conditioning, Start Serial: D5772

1шт.

16

84153083

WARNING DECAL

1шт.

Выбрано товаров: 16
