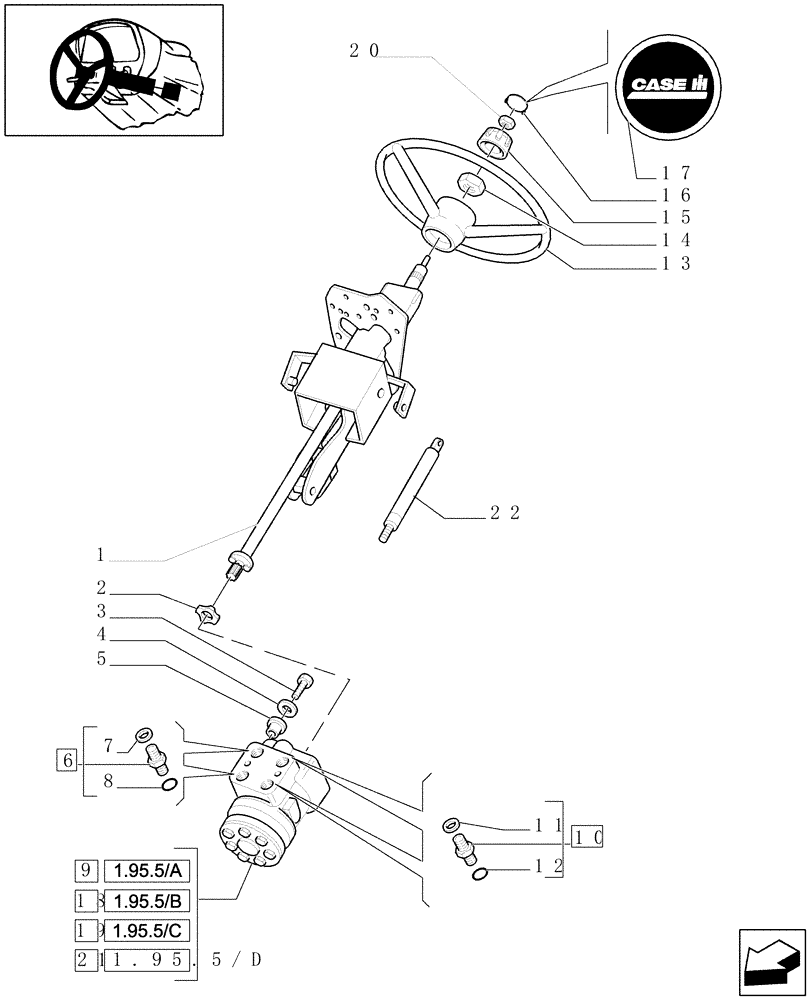

Запчасти Case IH MXU110 (1.95.5[01]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN (10) - OPERATORS PLATFORM/CAB

1

87327092

STEERING COLUMN

Tilt only, Incl. 22

1шт.

2

81873344

RUBBER INSULATOR

1шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

4

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

5

82009429

ISOLATOR

4шт.

6

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

M22X1,5 - 1/14

2шт.

7

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

19,6X24,3X1,5

2шт.

8

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

90 Duro

2шт.

9

82001904

HYDRAULIC STEERING

2WD, MXU100, MXU110, MXU115

1шт.

10

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

2шт.

11

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

15.7 x 20.9 x 1.5

2шт.

12

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

90 Duro

2шт.

13

89821708

STEERING WHEEL

1шт.

14

10726621

THIN NUT,Thin, M18 x 1.5, Cl 05

1шт.

15

87302160

KNOB

1шт.

16

87302798

CAP,54mm OD, Black

1шт.

17

86401707

EMBLEM

1шт.

18

82001250

HYDRAULIC STEERING

1шт.

STD Version for Heavy Duty Front Axle is valid for MXU100, MXU110, MXU115, too

1шт.

19

82001471

HYDRAULIC STEERING

1шт.

ALternative P.N.87391518

1шт.

19

82001471R

REMAN-HYD VALVE

Reman for New PN 82001471

1шт.

19

82001471C

CORE-VALVE HYD

Return Number

1шт.

20

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

21

87391518

HYDRAULIC STEERING

1шт.

Alternative P.N.82001471

1шт.

22

82036016

GAS STRUT

1шт.
