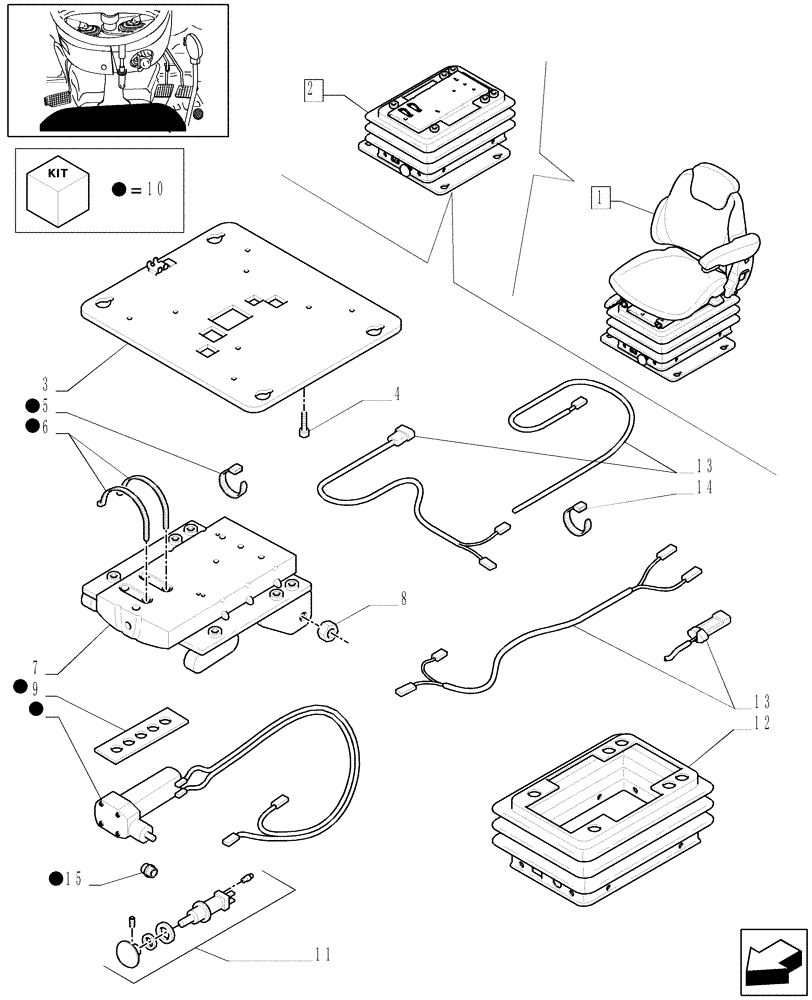

Запчасти Case IH MXU110 (1.93.3/ E[04]) - (VAR.854) "GRAMMER" DELUXE SEAT W/AIR SPRING, L/BELTS AND L/SWITCH - BREAKDOWN - W/CAB (10) - OPERATORS PLATFORM/CAB

1

87309507

DRIVER SEAT

ASSY

1шт.

2

82035138

SUSPENSION

ASSY

1шт.

3

82035134

MOUNTING PLATE

1шт.

4

82034896

SCREW,M8 x 1.25 x 1.25mm

M8x16

4шт.

5

82035024

CABLE TIE,M2.5 x 200

CABLE STRAP

4шт.

6

82035131

CABLE TIE,M7.6 x 387

CABLE STRAP

2шт.

7

82035098

SUSPENSION

Incl. 5, 6, 8

1шт.

8

82034883

NUT,CL 8.8

M8

2шт.

9

87331944

PLATE

1шт.

10

87331939

AIR COMPRESSOR KIT

1шт.

11

82035103

VALVE

1шт.

12

82035104

BELLOWS

1шт.

13

82035142

WIRE HARNESS

Incl. 5

1шт.

14

82035055

CABLE TIE,M4.7 x 204

CABLE STRAP

1шт.

15

87331945

FERRULE

1шт.
