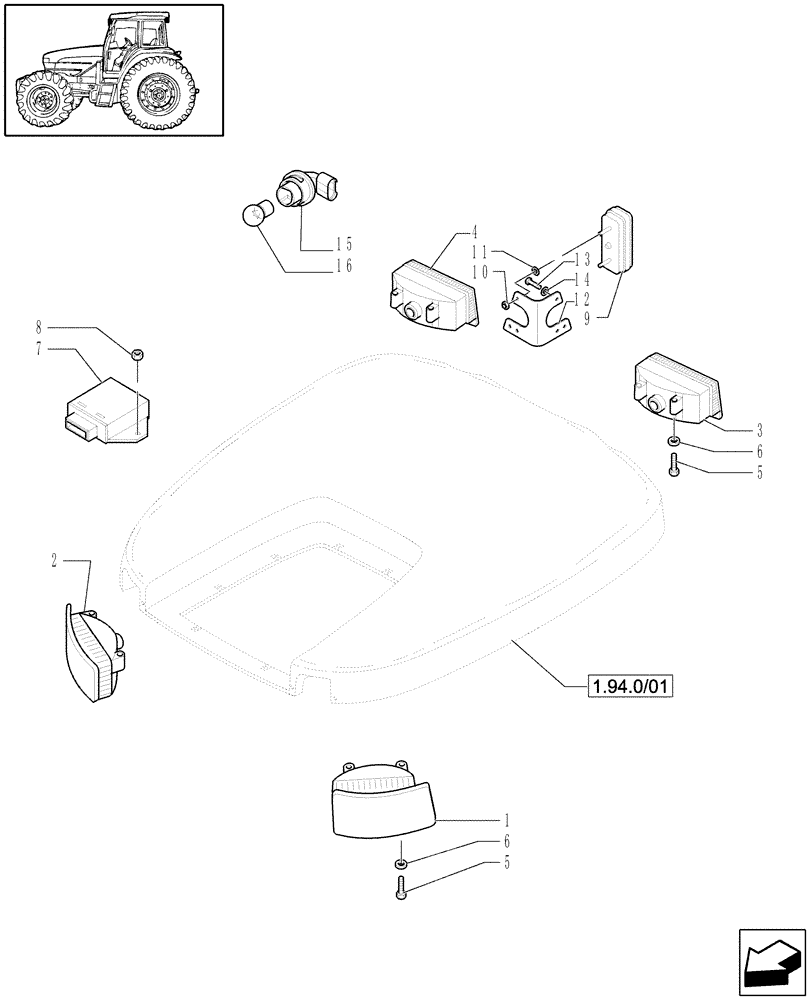

Запчасти Case IH MXU110 (1.91.3/01) - (VAR.007-053) NORTH AMERICA VERSION - WORKLAMPS (10) - OPERATORS PLATFORM/CAB

1

82033183

FLASHER LAMP

Front, LH, MXU100, MXU110, Serial Range: -C6560

1шт.

1

87301972

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

Front, LH, Incl. 15, 16

1шт.

MXU115, MXU130 Before Date 7 December 2007; All Models After 7 Dec. 2007

1шт.

2

82033184

FLASHER LAMP

Front, RH, MXU100, MXU110, Serial Range: -C6560

1шт.

2

87301973

FLASHER LAMP,Halogen, 12V, 21W, Amber Lens

Front, RH, Incl. 15, 16

1шт.

MXU115, MXU130 Before Date 7 December 2007; All Models After 7 Dec. 2007

1шт.

3

82033177

WORK LAMP

Rear, LH, MXU100, MXU110, Serial Range: -C6560

1шт.

3

87301968

FLASHER LAMP

Rear, LH, Incl. 15, 16

1шт.

MXU115, MXU130 Before Date 7 December 2007; All Models After 7 Dec. 2007

1шт.

4

82033178

WORK LAMP

Rear, RH, MXU100, MXU110, Serial Range: -C6560

1шт.

4

87301969

FLASHER LAMP

Rear, RH, Incl. 15, 16

1шт.

MXU115, MXU130 Before Date 7 December 2007; All Models After 7 Dec. 2007

1шт.

5

10903921

BOLT,Hex, M6 x 65mm, Cl 8.8

8шт.

6

17094714

LOCK WASHER,M6 x 13

8шт.

7

82038684

FLASHER UNIT

1шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

9

87327392

WARNING LIGHT

Amber Lense

4шт.

10

86509265

NUT,M5, Cl 10

8шт.

11

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

8шт.

12

87327321

BRACKET

4шт.

13

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

8шт.

14

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

8шт.

15

87304555

HOLDER

1шт.

16

14148090

BULB,PY21W, 12V, 21W

12V-21W

1шт.
