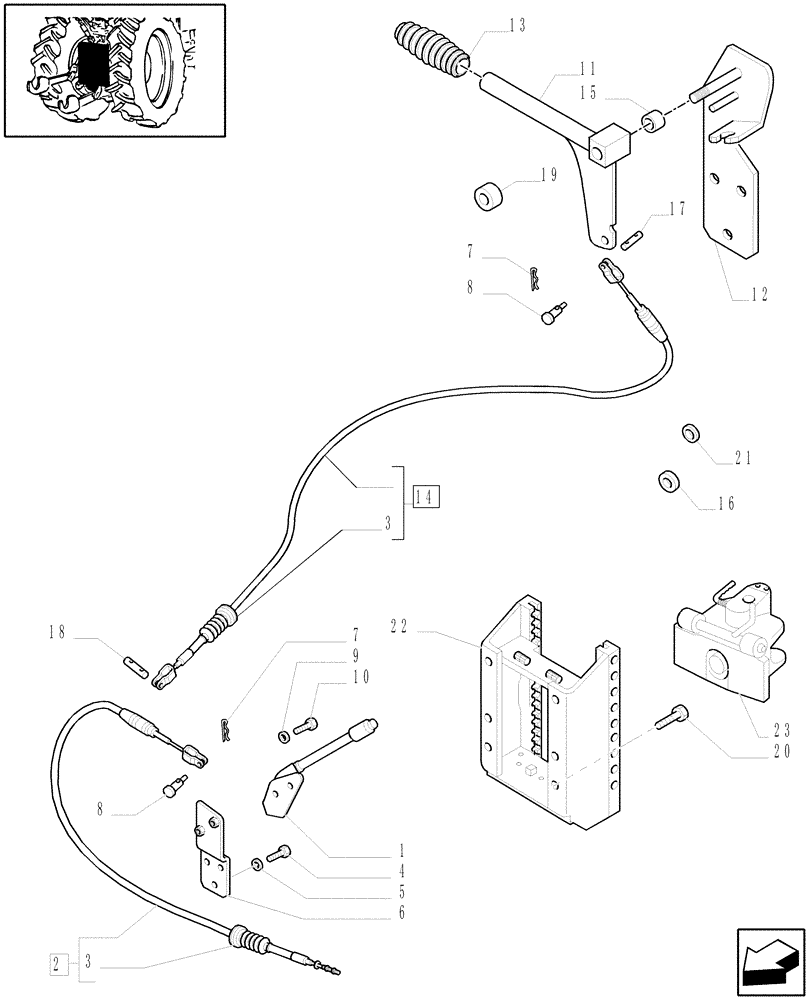

Запчасти Case IH MXU110 (1.89.5/02[01]) - (VAR.897) SLIDING SUPPORT WITH TRAILER HOOK - GERMANY - W/CAB (09) - IMPLEMENT LIFT

1

82030116

LEVER

, Serial Range: -C5179

1шт.

2

82031958

CABLE

Includes Ref.3, Serial Range: -C5179

1шт.

3

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

3шт.

6

82033947

BRACKET

, Serial Range: -C5179

1шт.

7

82033370

COTTER PIN,10mm OD

1шт.

8

81868749

PIN,7.9mm OD x 15.08mm L

15/16" x 19/32"

1шт.

9

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

, Serial Range: -C5179

2шт.

10

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

, Serial Range: -C5179

2шт.

11

87665892

LEVER

, Start Serial: D5179

1шт.

12

87306928

SUPPORT

, Serial Range: D5179-C5527

1шт.

12

87531029

SUPPORT

, Start Serial: D5527

1шт.

13

87666034

HANDLE GRIP

BlackD, Start Serial: D5179

1шт.

14

87307663

CABLE,2100mm L

, Start Serial: D5179

1шт.

15

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

, Start Serial: D5179

1шт.

16

81822628

CIRCLIP,1/2"

, Start Serial: D5179

1шт.

17

81868749

PIN,7.9mm OD x 15.08mm L

, Start Serial: D5179

1шт.

18

83957394

PIN,0.072" x 0.82"

, Start Serial: D5179

1шт.

19

87330878

CAP,9.50mm ID x 13.30

D=9.5, Start Serial: D5179

1шт.

19

87330882

CAP,End, 23.80mm ID x 25mm L

D=23.8, Start Serial: D5179

1шт.

20

16220874

BOLT,Hex, M18 x 1.5 x 45mm, Cl 12.9

8шт.

21

10571371

LOCK WASHER,M4

, Start Serial: D5179

2шт.

22

82039551

SUPPORT

1шт.

23

82028805

TOW HOOK

1шт.
